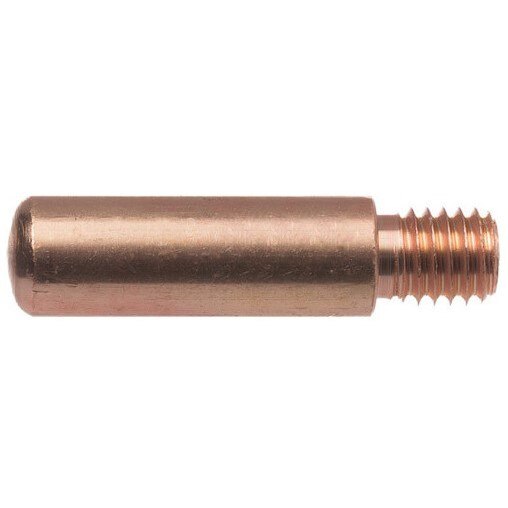

Tweco 1160-1105 Mig Contact Tip 0.052 in 1.5 in 25 Pack

Product Description

The TWECO 1160-1105 is a 16 Series Standard Heavy Duty contact tip designed for MIG welding applications up to 600 amps. Machined from 122 DHP copper alloy tubing, this tip accommodates 0.052-inch wire with a 0.064-inch nominal bore ID and 0.375-inch OD. The 1.5-inch length uses an M8 x 1.25-6g thread size and features a thick-walled design that acts as a heat sink, drawing heat away from the arc source. The inside diameter is held to a tolerance of plus or minus 0.003 inches for consistent wire feed and reliable arc performance. Installed and serviced by professional welders and MIG gun technicians.

This contact tip is designed for heavy-duty welding environments requiring sustained high-amperage output. It is compatible with Tweco Spray Master and Tweco No. 6 MIG guns rated at 350 to 600 amps, as well as specific additional Tweco MIG gun series. The tip accommodates both slip-on and thread-on nozzle styles. Each tip is marked with the part number and wire diameter for fast field identification. Sold in a pack of 25, making it well suited for shops and field crews with high consumable turnover.

Key Features

• Accommodates 0.052-inch wire with 0.064-inch nominal bore ID and plus or minus 0.003-inch ID tolerance
• Machined from extruded or gun-drilled 122 DHP copper alloy for a consistent, smooth bore surface
• Thick-walled design conducts heat away from the arc source, extending tip service life
• Twist-lock design locks tip in place on the gas diffuser and increases electrical contact surface area
• Quarter-turn clockwise rotation exposes a new wear point, effectively doubling tip life
• Part number and wire diameter marked on each tip for easy identification
• Rated for heavy-duty welding up to 600 amps

Compatibility

Compatible with Tweco Spray Master and Tweco No. 6 MIG guns rated at 350 to 600 amps, as well as specific Tweco MIG gun series. Fits both slip-on and thread-on nozzle styles using M8 x 1.25-6g thread.

Installation Notes

Installation and replacement should be performed by a qualified welder or MIG gun technician. Power down and disconnect the welding machine before servicing consumables. Ensure the gas diffuser threads are clean and undamaged before installing the contact tip. Do not overtighten, as this can deform the tip bore and affect wire feed consistency.

Technical Specifications

• Wire Size: 0.052 inches
• Bore ID: 0.064 inches nominal
• ID Tolerance: plus or minus 0.003 inches
• OD: 0.375 inches
• Length: 1.5 inches
• Thread Size: M8 x 1.25-6g
• Amperage Rating: 600 amps maximum
• Material: 122 DHP copper alloy
• Weight: 0.05 pounds
• Quantity per Pack: 25
• UOM: Each

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1160-1105
