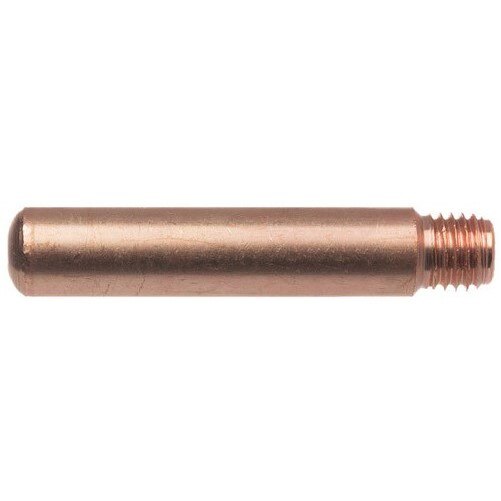

Tweco 1150-1206 Mig Contact Tip 0.062 in 25 Pack

Product Description

The TWECO 1150-1206 is a 15 Series Heavy Duty MIG contact tip designed for 0.062 inch (1/16 inch) wire with a 0.073 inch nominal bore diameter. Built from extruded or gun-drilled 122 DHP copper alloy and machined from copper alloy tubing, it delivers a consistent, smooth inside diameter held to a tolerance of plus or minus 0.003 inches. At 1.97 inches in length with a 5/16 inch-18 UNC-2A thread, this tip is rated for use in heavy duty welding applications up to 500 amps. Licensed welders and MIG gun technicians install this tip as a consumable replacement in high-amperage welding operations. Sold in packs of 25.

This contact tip is designed for use with 200 to 500 amp Tweco No. 5 MIG guns and compatible MIG gun series requiring the 15H tip style. The threaded style ensures solid contact with the gas diffuser upon installation. It fits both slip-on and thread-on nozzle configurations. Its thick-walled copper construction acts as a heat sink, conducting heat away from the arc source during sustained heavy duty welding cycles. Each tip is marked with the part number and wire diameter for fast identification during gun maintenance in the field or shop.

Key Features

• 0.062 inch wire diameter, 0.073 inch nominal bore ID with plus or minus 0.003 inch tolerance
• 122 DHP copper alloy construction for excellent electrical conductivity and heat dissipation
• 5/16 inch-18 UNC-2A thread size for secure gas diffuser contact
• Twist-lock design: quarter-turn clockwise locks tip in place; half-turn counter-clockwise reveals a new wear point, doubling tip life
• Thick-walled design functions as a heat sink to draw heat away from the arc
• Part number and wire diameter marked on each tip for quick identification
• Sold as 25 per pack

Compatibility

Designed for use with 200 to 500 amp Tweco No. 5 MIG guns and MIG gun series accepting the 15H Heavy Duty contact tip in 0.062 inch wire diameter.

Installation Notes

Contact tip replacement is performed by a qualified welder or MIG gun technician. Always power down the welding machine and allow the gun to cool before removing a worn tip. Use appropriate insulated gloves when handling components near the gun neck. Follow the gun manufacturer's torque guidance and inspect the gas diffuser for wear when replacing contact tips.

Technical Specifications

• Wire Diameter: 0.062 inches
• Bore Diameter (Nominal ID): 0.073 inches
• Outer Diameter (OD): 0.345 inches
• Tip Length: 1.97 inches
• Thread Size: 5/16 inch-18 UNC-2A
• Amperage Rating: Up to 500 amps
• Material: 122 DHP copper alloy
• ID Tolerance: plus or minus 0.003 inches
• Weight: 0.05 pounds
• Quantity per Pack: 25

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1150-1206
