Tweco 1150-1205 Mig Contact Tip 0.052 in 25 Pack

Product Description

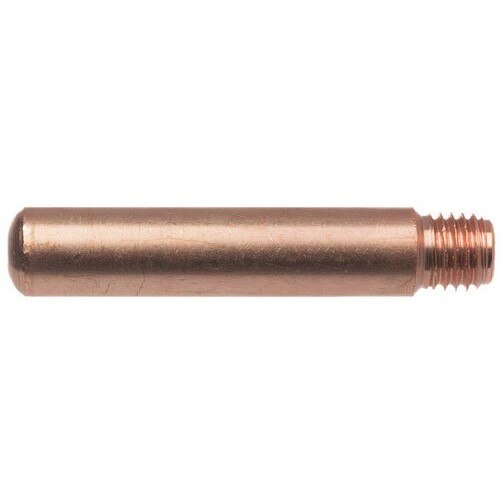

The TWECO 1150-1205 is a 15 Series Heavy Duty MIG contact tip rated for use in welding applications up to 500 amps. Designed for 0.052 inch wire, it features a 0.064 inch nominal bore ID and a 0.345 inch OD, with inside diameter tolerance held to plus or minus 0.003 inches. The tip measures 1.97 inches in length and threads on using a 5/16 inch-18 UNC-2A thread. Machined from extruded or gun-drilled 122 DHP copper alloy tubing, it delivers consistent bore surface quality and strong electrical conductivity. Licensed welding professionals and MIG gun technicians install this tip as a standard consumable replacement. Sold in packs of 25.

This contact tip is intended for heavy-duty MIG welding applications requiring sustained output up to 500 amps. It is compatible with Tweco No. 5 MIG guns rated in the 200 to 500 amp range, as well as specific MIG gun series that accept the 15 Series Heavy Duty tip format. The thick-walled copper alloy construction functions as a heat sink, drawing heat away from the arc source during high-amperage continuous welding cycles. The tip accepts both slip-on and thread-on nozzle styles, making it adaptable across common gun configurations in fabrication shops and industrial weld cells.

Key Features

• Accommodates 0.052 inch wire with 0.064 inch nominal bore ID and plus or minus 0.003 inch tolerance
• Rated for heavy-duty welding up to 500 amps
• Machined from 122 DHP copper alloy for consistent bore surface and high electrical conductivity
• Twist-lock design seats firmly against the gas diffuser, increasing electrical contact surface area
• Quarter-turn clockwise rotation reveals a second wear point, effectively doubling tip service life
• Each tip is marked with part number and wire diameter for quick field identification
• Compatible with slip-on and thread-on nozzle styles

Compatibility

Designed for use with Tweco No. 5 MIG guns rated 200 to 500 amps and specific MIG gun series accepting the 15 Series Heavy Duty contact tip format with 5/16 inch-18 UNC-2A thread.

Installation Notes

Contact tips are installed and replaced by qualified welding technicians as part of routine MIG gun consumable maintenance. Power down and de-energize the welding system before removing or replacing the contact tip. Thread the tip fully onto the gas diffuser by hand, then verify the twist-lock seats properly before resuming operation. Do not overtighten, as this can damage the diffuser threads or deform the tip bore.

Technical Specifications

• Wire Diameter: 0.052 inches
• Bore ID (Nominal): 0.064 inches
• Bore ID Tolerance: plus or minus 0.003 inches
• Outside Diameter: 0.345 inches
• Length: 1.97 inches
• Thread Size: 5/16 inch-18 UNC-2A
• Current Rating: 500 amps maximum
• Material: 122 DHP copper alloy
• Weight: 0.05 pounds
• Pack Quantity: 25 per pack
• UPC: 608246051895

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1150-1205
