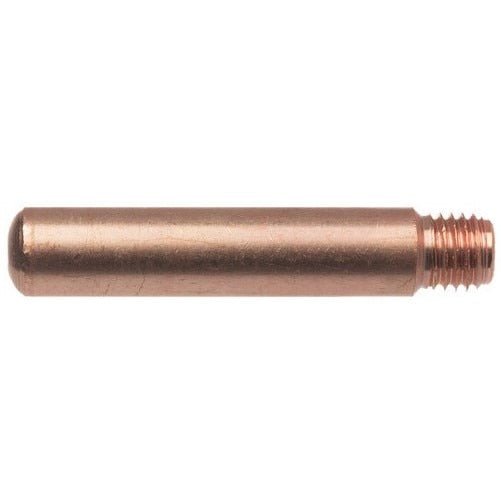

Tweco 1150-1202 Mig Contact Tip 0.035 in 0.044 Bore 25 Pack

Product Description

The TWECO 1150-1202 is a 15 Series Heavy Duty MIG contact tip designed for 0.035 inch wire with a 0.044 inch nominal bore and 1.97 inch overall length. Machined from extruded or gun-drilled 122 DHP copper alloy tubing, it delivers a consistent, smooth inside diameter held to a tolerance of plus or minus 0.003 inches. The thick-walled design acts as a heat sink, conducting heat away from the arc source for extended service life in demanding applications up to 500 amps. The tip carries a 5/16 inch-18 UNC-2A thread and a 0.345 inch OD. Licensed welding professionals and MIG gun technicians install this tip as a consumable replacement in high-amperage production and fabrication environments. Sold in a pack of 25.

This contact tip is intended for heavy-duty MIG welding applications rated up to 500 amps. It is compatible with 200 to 500 amp Tweco No. 5 MIG guns and specific Tweco MIG gun series that accept the 15H tip form. The tip supports both slip-on and thread-on nozzle styles. Part number and wire diameter are marked directly on the tip for fast identification during changeover. When the initial wear point is reached, a quarter-turn clockwise rotation reveals a new wear point, effectively doubling the usable life of each tip.

Key Features

• 122 DHP copper alloy construction provides excellent electrical conductivity and heat dissipation
• Inside diameter tolerance held to plus or minus 0.003 inches for consistent wire feeding
• Thick-walled design acts as a heat sink to draw heat away from the arc source
• Quarter-turn rotation exposes a second wear point, doubling tip service life
• 5/16 inch-18 UNC-2A thread ensures solid contact with compatible gas diffusers
• Part number and wire diameter marked on each tip for easy field identification
• Compatible with both slip-on and thread-on nozzle configurations

Compatibility

Designed for use with 200 to 500 amp Tweco No. 5 MIG guns and specific Tweco MIG gun series that accept the 15H heavy-duty contact tip form in slip-on or thread-on nozzle configurations.

Installation Notes

Contact tip replacement is performed by a qualified welder or MIG gun technician. De-energize the welding power source and allow the gun to cool before handling consumables. Thread the tip into the gas diffuser by hand until snug to ensure proper electrical contact; do not overtighten. Verify wire diameter match before resuming operation.

Technical Specifications

• Wire Diameter: 0.035 inches
• Bore (Nominal ID): 0.044 inches
• Outside Diameter: 0.345 inches
• Length: 1.97 inches
• Thread Size: 5/16 inch-18 UNC-2A
• Maximum Amperage: 500 amps
• Material: 122 DHP copper alloy
• Inside Diameter Tolerance: plus or minus 0.003 inches
• Package Quantity: 25 each
• Weight: 0.06 pounds
• UPC: 608246051871

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1150-1202
