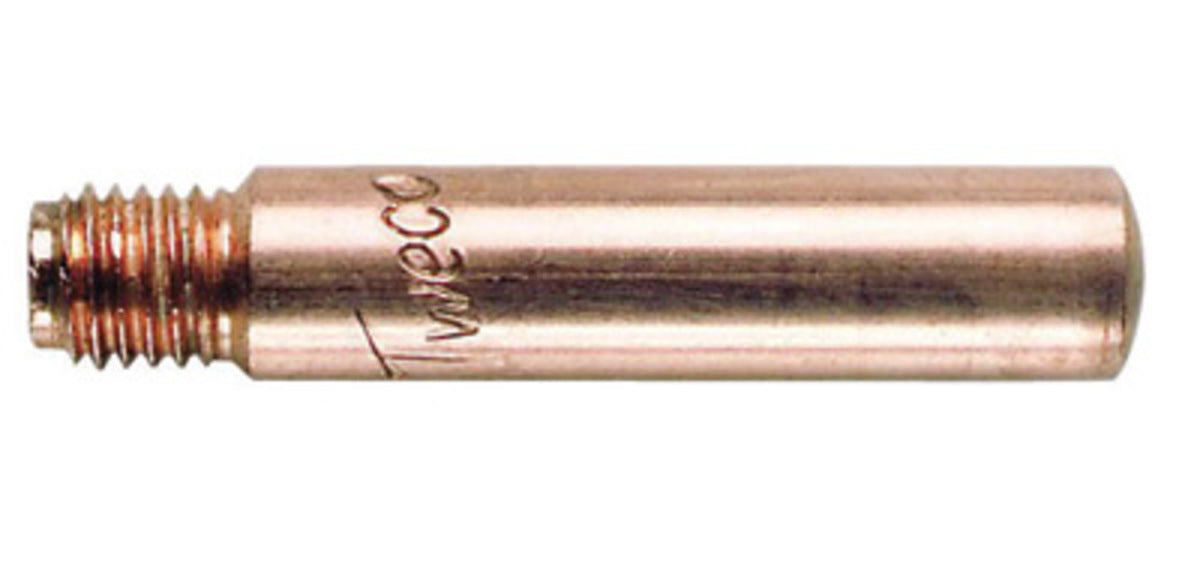

Tweco 1140-1430 14 Contact Tip 0.035 Inch (25 Pack) 14RZ-35

Product Description

The Tweco 1140-1430 contact tip is a size 14 MIG welding tip machined from chrome zirconium 1815 alloy for 0.035 inch wire. It has a nominal 0.041 inch bore with +/-0.003 inch tolerance, a 1.47 inch tip length, and 1/4-28 UNF-2A threading for secure contact with a gas diffuser. The tip is specified for 200-400 A and is supplied in packs of 25.

• Material: chrome zirconium 1815 alloy; nominal ID 0.041 inch with +/-0.003 inch tolerance
• Threaded 1/4-28 UNF-2A for proper contact with gas diffuser; compatible with 200-400 A Tweco No. 2, No. 3, No. 4 MIG guns
• Packaged 25 per pack; size 14 tip, tip outer diameter 0.283 inch and tip length 1.47 inch

Product Highlights

Size 14 chrome zirconium contact tip for 0.035 in wire; 0.041 in bore, 1/4-28 UNF-2A thread; 25 pieces per pack

Product Information

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1140-1430
• Country of Origin: US

Technical Specifications

• Brand: Tweco
• Manufacturer: ESAB
• Manufacturer Part Number: 1140-1430
• Alternate Part Number: 14RZ-35
• Series: 14RZ
• Wire Size: 0.035 inch
• Tip Bore (Nominal ID): 0.041 inch
• ID Tolerance: +/-0.003 inch
• Tip Outer Diameter: 0.283 inch
• Tip Length: 1.47 inch
• Thread Size: 1/4-28 UNF-2A
• Material / Alloy: Chrome zirconium (1815)
• Compatible Amperage: 200-400 A
• Compatible Guns: Tweco No. 2, No. 3, No. 4 MIG guns
• Pack Quantity: 25 per pack
• Tip Size/Type: 14
• Country of Origin: US
• UPC: 608246308999
