Tweco 1140-1301 Mig Contact Tip 0.030 in 25 Pack

Product Description

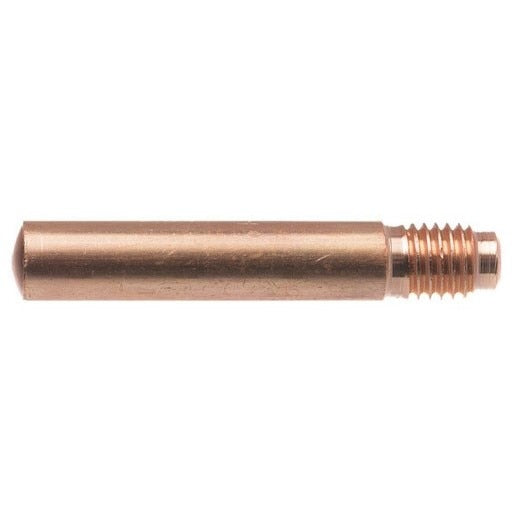

The TWECO 1140-1301 is a 14 Series Standard Duty Tapered Contact Tip designed for MIG welding applications up to 400 amps. It accommodates 0.030-inch wire with a 0.038-inch nominal bore ID and measures 1.5 inches in length. Machined from extruded or gun-drilled 122 DHP copper alloy tubing, it delivers a consistent, smooth inside diameter surface held to a tolerance of plus or minus 0.003 inches. The thick-walled design acts as a heat sink, conducting heat away from the arc source. Sold in packs of 25, this tip is a direct-use consumable for professional MIG welding operations.

This contact tip is suited for standard MIG welding in both production and repair environments. It is rated for use with 200 to 400 amp Tweco No. 2, No. 3, and No. 4 MIG guns, as well as compatible MIG gun series within that amp range. The 1/4-28 UNF-2A threaded style ensures proper seating against a gas diffuser. The tip accepts slip-on or thread-on nozzle styles and is compatible with standard copper-alloy diffuser configurations. Each tip is marked with the part number and wire diameter for quick identification during changeover.

Key Features

• 0.030-inch wire diameter, 0.038-inch nominal bore ID with plus or minus 0.003-inch tolerance
• 1/4-28 UNF-2A thread with 1/4-inch OD for secure diffuser engagement
• Machined from 122 DHP copper alloy for consistent bore surface and excellent electrical conductivity
• Thick-walled design acts as a heat sink to draw heat away from the arc
• Twist-lock design locks tip in place and increases electrical contact surface area against the diffuser
• Quarter-turn clockwise rotation reveals a new wear point, effectively doubling tip service life
• Part number and wire diameter marked on each tip for fast identification

Compatibility

Designed for use with 200 to 400 amp Tweco No. 2, No. 3, and No. 4 MIG guns, as well as compatible MIG gun series in that amperage range. Fits slip-on and thread-on nozzle configurations.

Installation Notes

Installation is performed by a qualified welder or MIG gun technician. Power down and de-energize the MIG gun completely before replacing the contact tip. Thread the tip into the gas diffuser by hand and snug it with appropriate pliers — do not overtighten, as this can damage the diffuser threads. Ensure the nozzle is reinstalled and seated before resuming welding operations.

Technical Specifications

• Wire Diameter: 0.030 inches
• Bore ID (Nominal): 0.038 inches
• Bore Tolerance: plus or minus 0.003 inches
• Length: 1.5 inches
• OD: 0.25 inches
• Thread Size: 1/4-28 UNF-2A
• Amperage Rating: up to 400 amps
• Material: 122 DHP Copper Alloy
• Pack Quantity: 25 per pack
• Weight: 0.02 pounds
• UOM: Each

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1140-1301
