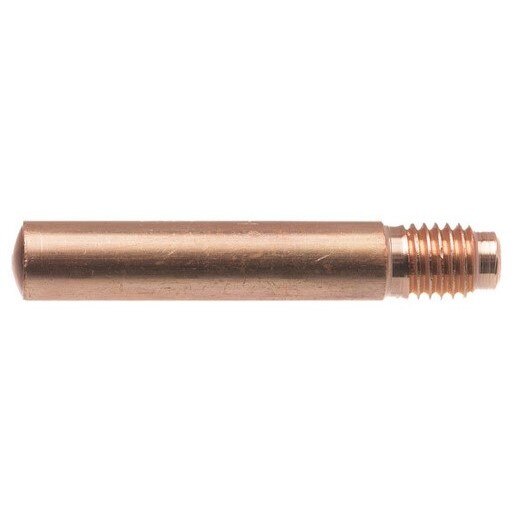

Tweco 1140-1109 Mig Contact Tip 5/64 in 0.090 Bore 25 Pack

Product Description

The TWECO 1140-1109 is a standard-duty MIG contact tip designed for 5/64-inch welding wire with a 0.090-inch nominal bore diameter. Measuring 1.5 inches in length, it is machined from 122 DHP copper alloy tubing using an extrusion or gun-drill process. This manufacturing method produces a consistent, smooth inside diameter surface held to a tolerance of plus or minus 0.003 inches. The tip features a threaded style with a 1/4-inch-28 UNF-2A thread and a 1/4-inch OD, ensuring positive contact with a gas diffuser when installed. Sold in packs of 25, these tips are intended for licensed welding technicians and shop personnel working in standard MIG welding applications.

The 1140-1109 is rated for use in standard MIG welding applications up to 400 amps. It is compatible with the Tweco No. 2, No. 3, and No. 4 MIG gun platforms as well as specific Tweco MIG gun series. The thick-walled copper alloy construction acts as a heat sink, drawing heat away from the arc source during extended operation. The tip accepts both slip-on and thread-on nozzle styles, making it suitable for a range of Tweco-compatible MIG gun configurations in light industrial, fabrication, and production welding environments.

Key Features

• 5/64-inch wire diameter, 0.090-inch nominal bore ID held to plus or minus 0.003 inches tolerance
• Machined from 122 DHP copper alloy for consistent electrical conductivity and smooth wire feed
• 1/4-inch-28 UNF-2A threaded style ensures secure, positive contact with gas diffuser
• Twist-lock design locks in place with a quarter-turn clockwise; exposes a new wear point to extend tip life
• Thick-walled design functions as a heat sink to reduce heat buildup at the arc source
• Part number and wire diameter marked on each tip for fast field identification
• Sold as 25 per pack for shop and fleet stocking

Compatibility

Compatible with Tweco No. 2, No. 3, and No. 4 MIG guns as well as specific Tweco MIG gun series. Fits slip-on and thread-on nozzle configurations. Designed for standard MIG welding applications up to 400 amps.

Installation Notes

Contact tip replacement is a routine consumable service performed by qualified welding technicians. Power down and allow the MIG gun to cool before removing a spent tip. Use the correct thread engagement when installing the threaded tip into the gas diffuser to avoid cross-threading. Inspect the gas diffuser for wear or spatter buildup at the same time the tip is replaced.

Technical Specifications

• Wire Diameter: 5/64 inches
• Bore Diameter (Nominal ID): 0.090 inches
• Bore Tolerance: plus or minus 0.003 inches
• Thread Size: 1/4-28 UNF-2A
• Outer Diameter: 1/4 inches
• Length: 1.5 inches
• Current Rating: 400 amps
• Material: 122 DHP Copper Alloy
• Weight: 0.02 pounds
• Quantity per Pack: 25
• UOM: Each

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1140-1109
