Tweco 1140-1105 Mig Contact Tip 0.052 in 25 Pack

Product Description

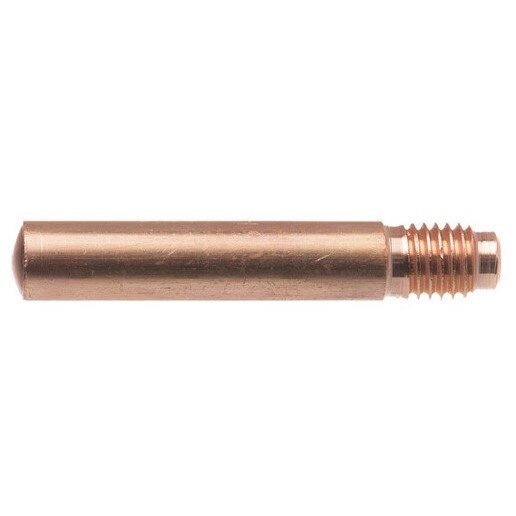

The TWECO 1140-1105 is a 14 Series standard-duty MIG contact tip designed for 0.052-inch wire with a 0.064-inch nominal bore diameter. At 1.5 inches in length, this tip is machined from 122 DHP copper alloy using extruded or gun-drilled tubing to deliver a consistent, smooth inside diameter held to a tolerance of plus or minus 0.003 inches. The thick-walled construction acts as a heat sink, drawing heat away from the arc source. Rated for use up to 400 amps, it carries a 1/4-inch-28 UNF-2A thread profile and a 1/4-inch OD. Each tip is marked with part number and wire diameter for fast identification on the job. Sold in packs of 25.

This contact tip is suited for standard MIG welding applications up to 400 amps. It is compatible with Tweco No. 2, No. 3, and No. 4 MIG guns rated in the 200 to 400 amp range, as well as compatible Tweco MIG gun series that accept 14 Series consumables. The threaded style ensures solid contact with the gas diffuser when seated in the gun. It accommodates both slip-on and thread-on nozzle configurations, making it adaptable across common Tweco torch setups used in fabrication, maintenance, and production welding environments.

Key Features

• 0.052-inch wire size with 0.064-inch nominal bore and plus or minus 0.003-inch ID tolerance
• Machined from 122 DHP copper alloy for consistent bore surface and excellent electrical conductivity
• Thick-walled design acts as a heat sink to conduct heat away from the arc
• Twist-lock design locks tip in place against the gas diffuser without relying solely on threads
• Quarter-turn clockwise rotation reveals a new wear point, effectively doubling tip service life
• Part number and wire diameter marked on each tip for quick identification

Compatibility

Compatible with Tweco No. 2, No. 3, and No. 4 MIG guns operating in the 200 to 400 amp range, and other Tweco MIG gun series designed to accept 14 Series standard-duty contact tips.

Installation Notes

Contact tip installation and replacement is performed by welders and MIG gun technicians. Always de-energize the welding power source and allow the gun to cool before servicing consumables. Thread the tip fully into the gas diffuser by hand, then seat it using the twist-lock method to ensure proper electrical contact. Inspect the bore diameter for wear and rotate a quarter turn clockwise to expose a fresh wear point before replacing the tip entirely.

Technical Specifications

• Wire Diameter: 0.052 inches
• Bore Diameter (Nominal ID): 0.064 inches
• ID Tolerance: plus or minus 0.003 inches
• Tip Length: 1.5 inches
• Outer Diameter: 0.25 inches
• Thread Size: 1/4-28 UNF-2A
• Current Rating: 400 amps maximum
• Material: 122 DHP Copper Alloy
• Weight: 0.02 pounds
• Sold As: 25 per pack

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1140-1105
