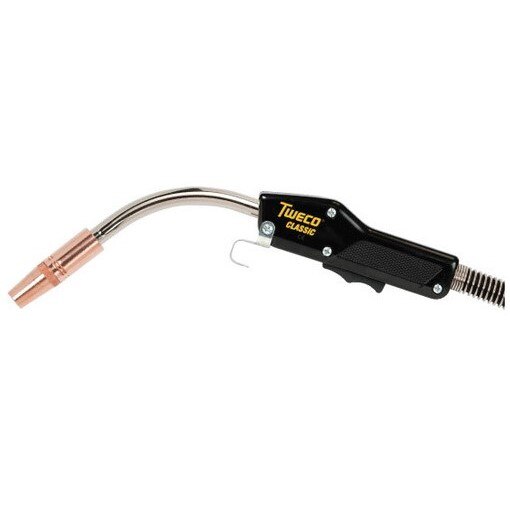

Tweco 1050-1115 Mig Welding Gun 500A 25 Ft Air Cooled

Product Description

The TWECO 1050-1115 is a 500-amp, air-cooled MIG welding gun designed for heavy-duty industrial fabrication. It operates at a 60% duty cycle and accommodates wire up to 1/16 inch. The gun connects via Tweco rear connection and ships with a 25-foot cable assembly. The conductor tube uses a three-layer metal-jacketed construction — copper tube inner core, silicon-resin glass insulator, and outer metal jacket — for consistent electrical conductivity under sustained load. The oval-shaped handle is balanced to pivot at center, reducing grip effort and operator fatigue during extended welding sessions. This gun is built for licensed welding professionals and industrial production environments.

The 1050-1115 is suited for heavy fabrication in automotive manufacturing, shipbuilding and offshore yards, steel industry production, and general industrial repair and maintenance work. Its 500-amp output and air-cooled design make it appropriate for high-amperage, semi-automatic MIG processes where extended arc-on time is common. The field-repairable Cablehoz design and split handle case allow in-shop repairs without full gun replacement, reducing downtime on production floors.

Key Features

• 500-amp output at 60% duty cycle — rated for sustained heavy fabrication work
• Three-layer metal-jacketed conductor tube (copper tube, silicon-resin glass insulator, metal jacket) for improved electrical conductivity
• Oval-shaped, center-balanced handle reduces grip force and operator fatigue
• Trigger with silver-plated contacts and self-cleaning action on every engagement and disengagement
• Front and rear steel spring strain relief minimizes wire feed issues at the Cablehoz exit point
• Field-repairable Cablehoz and split handle case allow on-site repairs without additional connectors
• Interchangeable front-end consumables compatible with Tweco Classic No. and Tweco Spray Master series

Compatibility

Front-end consumables are interchangeable between the Tweco Classic No. series and the Tweco Spray Master series. Accepts wire up to 1/16 inch diameter. Connects via standard Tweco rear connection.

Installation Notes

Installation and setup should be performed by a qualified welding professional familiar with semi-automatic MIG equipment. Disconnect and de-energize the welding power source before attaching or servicing the gun and cable assembly. Verify that the wire feeder drive roll size matches the wire diameter being used before threading wire through the Cablehoz and contact tip. Follow applicable AWS and facility safety guidelines for MIG welding equipment setup and operation.

Technical Specifications

• Amperage: 500 amps
• Duty Cycle: 60%
• Cable Length: 25 feet
Maximum Wire Diameter: 1/16 inch
• Cooling Method: Air cooled
• Connection Type: Tweco rear connection
• Package Dimensions: 23.2 inches x 14.1 inches x 3.4 inches
• Weight: 20.15 pounds
• UPC: 608246079660

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1050-1115
