Tweco 1048-1285 Mig Gun 450A 15 Ft Air Cooled

Product Description

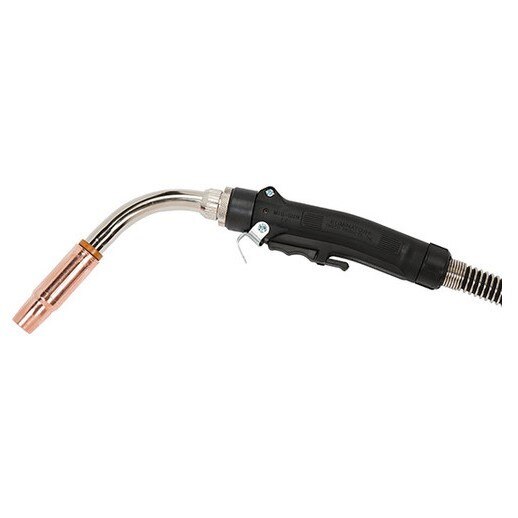

The TWECO 1048-1285 is the Eliminator 450A MIG gun, an air-cooled semiautomatic welding gun designed for professional MIG welding in shop, production, and maintenance environments. It accommodates wire diameters from 0.035 to 0.045 inches and delivers a 60% duty cycle when used with CO2 gas. The 15-foot power cable features a Lincoln-style rear connection and is engineered for reliable wire feedability. A metal-jacketed, articulating conductor tube built with three-layer construction -- copper tube, silicone resin fiberglass insulator, and metal jacket -- provides durability under continuous use. Licensed welders and fabricators in light industrial and production settings are the primary installers.

The 1048-1285 suits a wide range of applications including farm maintenance, shop fabrication, artistic metalwork, and production welding. It supports spray transfer and pulse welding modes with straight CO2 or mixed shielding gases. The standard 60-degree conductor tube swivels 360 degrees around the handle and can be removed and replaced in the field without pulling the conduit. The fully insulated Mig-Kwik connection allows fast connect and disconnect at the wire feeder, reducing downtime during gun swaps or service.

Key Features

• 450A output with 60% duty cycle rating using CO2 gas
• Accommodates wire diameters from 0.035 to 0.045 inches
• 15-foot power cable with Lincoln-style rear connection for broad feeder compatibility
• Ball-and-socket articulating conductor tube with three-layer construction: copper tube, silicone resin fiberglass insulator, and metal jacket
• Patented cam-style contact tip interface with no threads -- increases surface contact between tip and gas diffuser for extended tip life
• Ergonomic split-half handle with extended trigger length reduces operator fatigue and radiated heat to gloved hands; field-repairable without special tooling
• Dual spring and rubber strain reliefs on both front and rear ends of the cable

Compatibility

Designed as an OEM-style replacement and direct-fit MIG gun for wire feeders accepting a Lincoln-style rear connection, compatible with 0.035 to 0.045 inch wire diameters in air-cooled MIG welding setups.

Installation Notes

Installation is performed by a qualified welder or welding equipment technician. Disconnect and de-energize the wire feeder and welding power source completely before attaching or removing the gun. Secure the Mig-Kwik connection fully at the feeder before energizing. Inspect the conductor tube, contact tip, and cable for damage before placing the gun into service.

Technical Specifications

• Amperage: 450A
• Duty Cycle: 60% with CO2 gas
• Wire Diameter Range: 0.035 to 0.045 inches
• Cable Length: 15 feet
• Cooling Method: Air cooled
• Conductor Tube Angle: 60 degrees standard
• Rear Connection Style: Lincoln style
• Package Weight: 12.3 pounds
• Package Length: 23.2 inches
• Package Width: 14.3 inches
• Package Height: 3.3 inches
• Sold As: Each
• UPC: 608246138749

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1048-1285
