Tweco 1048-1261 Mig Gun 450A 15 Ft Miller Style

Product Description

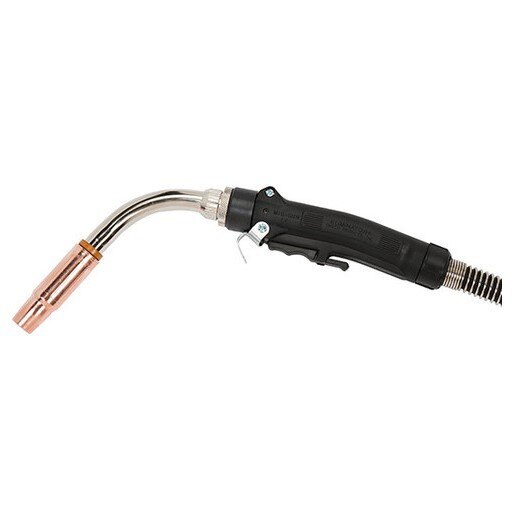

The TWECO 1048-1261 is the Eliminator series air-cooled MIG welding gun, rated at 450 amps and built for demanding production and maintenance welding environments. It accepts wire sizes from 0.045 inches to 1/16 inch and ships with a 15-foot power cable. The gun features a Miller-style rear connection and a fully insulated Mig-Kwik connector that allows quick connect and disconnect at the wire feeder. A patented cam-style contact tip interface eliminates threaded engagement, increasing surface contact between the tip and gas diffuser for improved tip life and conductivity.

This gun is suited for a wide range of welding applications including spray transfer and pulse welding modes using straight CO2 or mixed shielding gases. It is commonly installed in production shops, maintenance and repair facilities, farm operations, garages, and light fabrication environments. The ergonomic handle design reduces operator fatigue during extended use, and the extended trigger length helps reduce radiated heat to the welder's gloved hand. The 60-degree conductor tube swivels 360 degrees around the handle and can be removed and replaced rapidly without pulling the conduit.

Key Features

• 450A air-cooled gun rated at 60 percent duty cycle using CO2 gas
• Accepts wire sizes 0.045 inches to 1/16 inch
• Miller-style rear connection with fully insulated Mig-Kwik feeder connector
• Patented cam-style contact tip interface for increased surface contact and extended tip life
• 360-degree swiveling, metal-jacketed articulating conductor tube with three-layer construction: copper tube, silicone resin fiberglass insulator, and metal jacket
• Split-half handle case for field-serviceable repairs; spare trigger leads housed in Cablehoz
• Dual spring and rubber strain reliefs on both ends of the cable

Compatibility

Designed for use with Miller-style wire feeders. Accepts standard Tweco Eliminator series consumables including patented extended-life contact tips and gas diffusers.

Installation Notes

Installation and service should be performed by a qualified welding professional familiar with NFPA 70 (NEC) electrical requirements and manufacturer wiring guidelines. Power down and disconnect the wire feeder from its power source before connecting or servicing the gun. Verify that the Mig-Kwik connection is fully seated and the rear connector is locked before resuming welding operations. Do not exceed the rated duty cycle, as overheating the cable assembly will reduce service life.

Technical Specifications

• Amperage Rating: 450 amps
• Duty Cycle: 60 percent at rated amperage using CO2 gas
• Wire Size Range: 0.045 inches to 1/16 inch
• Cable Length: 15 feet
• Rear Connection Style: Miller style
• Conductor Tube Angle: 60 degrees standard
• Cooling Method: Air cooled
• Package Weight: 12.35 pounds
• Package Length: 23.1 inches
• Package Width: 14.4 inches
• Package Height: 3.6 inches

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1048-1261
