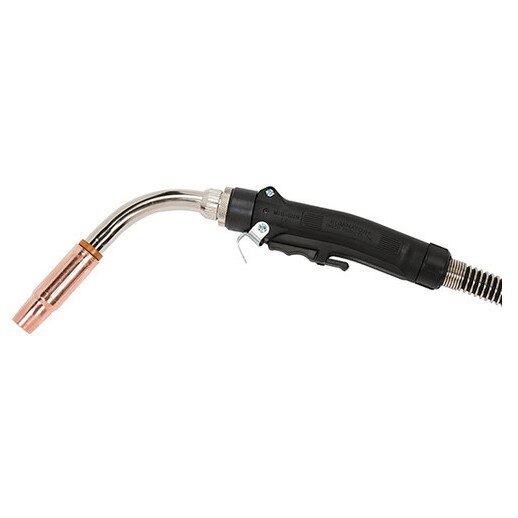

Tweco 1048-1260 Mig Gun 450A 15 Ft Miller Style

Product Description

The TWECO 1048-1260 is the Eliminator series air-cooled MIG gun rated at 450 amps with a 60% duty cycle using CO2 gas. It accepts wire diameters from 0.035 to 0.045 inches and ships with a 15-foot power cable designed for reliable wire feedability. The conductor tube uses a three-layer ball-and-socket construction — copper tube, silicone resin fiberglass insulator, and metal jacket — giving the assembly both articulation and durability. A fully insulated Mig-Kwik connection allows the gun to be connected or disconnected at the wire feeder without removing the conduit. Licensed HVAC, plumbing, and welding professionals recognize this as a production-grade tool built for extended shop use.

This MIG gun is suited for farm, garage, shop, maintenance and repair, and light-to-medium production welding environments. The Miller-style rear connection makes it a direct fit for Miller wire feeders. It supports spray transfer and pulse welding modes with straight CO2 or mixed shielding gases. The ergonomic split-half handle and extended trigger reduce operator fatigue during prolonged welding operations, making it practical for both hobby metalworking and professional shop jobs.

Key Features

• 450A rating at 60% duty cycle with CO2 gas
• Accepts 0.035 to 0.045 inch wire diameters
• Three-layer metal jacketed articulating conductor tube with ball-and-socket design for 360-degree swivel around handle
• Dual spring and rubber strain reliefs on both front and rear ends
• Fully insulated Mig-Kwik connection for tool-free connect and disconnect at the wire feeder
• Split-half handle case for field-serviceable repairs without special tooling
• Standard 60-degree conductor tube; removable and replaceable without removing the conduit

Compatibility

Designed for use with Miller-style wire feeders. The 15-foot cable with Miller-style rear connection provides direct compatibility with Miller feeder platforms. No other specific model numbers were stated in the product data.

Installation Notes

Installation should be performed by a qualified welding equipment technician or experienced welder following the wire feeder manufacturer's instructions. Always power down and de-energize the wire feeder before connecting or disconnecting the gun at the feeder connection. Verify that the contact tip size matches the wire diameter in use before initiating a weld. Inspect the conductor tube, strain reliefs, and trigger leads periodically and replace worn consumables as part of routine maintenance.

Technical Specifications

• Amperage: 450A
• Duty Cycle: 60% with CO2 gas
• Wire Diameter Range: 0.035 to 0.045 inches
• Cable Length: 15 feet
• Conductor Tube Angle: 60 degrees standard
• Cooling Type: Air-cooled
• Rear Connection Style: Miller style
• Package Weight: 12.3 pounds
• UPC: 608246130804

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1048-1260
