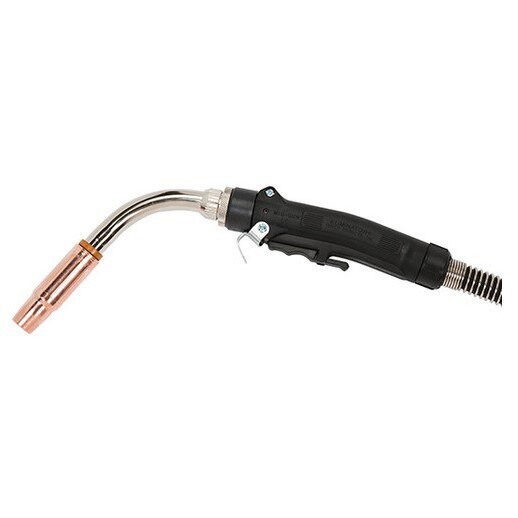

Tweco 1048-1211 Mig Gun 450A 15 Ft Air Cooled

Product Description

The TWECO 1048-1211 is a 450-amp, 15-foot air-cooled MIG welding gun designed for demanding industrial and production welding environments. Built around the Compact Eliminator platform, it accepts wire diameters from 0.045 inches to 1/16 inches and connects via a Tweco-style rear connection. The gun is rated at 60% duty cycle using CO2 shielding gas. Its articulating ball-and-socket conductor tube features a three-layer construction — copper tube, silicon resin fiberglass insulator, and metal jacket — providing durability and flexibility during continuous operation. Licensed welding professionals and experienced fabricators are the primary installers and operators of this equipment.

This MIG gun is suited for a broad range of applications including production welding, maintenance and repair, farm and shop work, and artistic metalworking. It supports spray transfer and pulse welding modes and is compatible with straight CO2 or mixed shielding gases. The ergonomic handle design reduces operator fatigue during extended use, making it appropriate for both short-run repair jobs and high-volume production settings.

Key Features

• 450-amp output rated at 60% duty cycle with CO2 gas
• Accepts 0.045-inch to 1/16-inch wire diameter
• Ergonomic handle with extended trigger length to reduce radiated heat to the operator's gloved hand
• Split-half handle case for field-serviceable repairs; field-repairable mechanical cable connections for Cablehoz
• Patented cam-style contact tip interface — no threads — increases surface contact between tip and gas diffuser for extended consumable life
• Articulating ball-and-socket conductor tube with metal jacket standard; fixed locking conductor tube available as an option
• Dual spring and rubber strain reliefs on both front and rear ends; spare trigger leads included in Cablehoz

Compatibility

Designed for use with Tweco-style rear connection MIG welding systems; compatible with spray transfer and pulse welding processes using straight CO2 or mixed shielding gases and wire diameters from 0.045 inches to 1/16 inches.

Installation Notes

Installation and setup should be performed by a qualified welding professional familiar with MIG gun assembly and wire-feed system connections. Before servicing or replacing any component, shut off the welding power source and disconnect it from the power supply. Verify that the wire-feed drive rolls and liner are matched to the wire diameter in use. Follow all applicable AWS safety guidelines and the equipment manufacturer's instructions for conductor tube positioning and consumable replacement.

Technical Specifications

• Amperage: 450 amps
• Duty Cycle: 60% (CO2 gas)
• Cable Length: 15 feet
• Wire Diameter Range: 0.045 inches to 1/16 inches
• Cooling Method: Air cooled
• Connection Type: Tweco-style rear connection
• Weight: 12.4 pounds

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1048-1211
