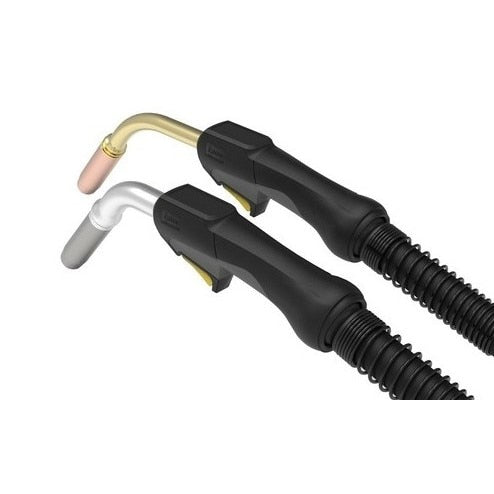

Tweco 1044-1139 Water-cooled Mig Gun 550A 15 Ft

Product Description

The TWECO 1044-1139 is a water-cooled MIG welding gun built for sustained high-amperage output in demanding fabrication environments. Rated at 500 amps at 100% duty cycle with mixed gas and 550 amps at 100% duty cycle with CO2, this gun delivers consistent performance where air-cooled guns fall short. The advanced cooling channels in the conductor tube allow for rapid heat dissipation, extending the service life of front-end wear parts by up to five times compared to gas-cooled MIG guns. The gun measures 15 feet in length and features a Euro-Kwik connection, making it compatible with most competitive wire feeders. It accepts wire in the 0.035-inch to 1/16-inch diameter range. Licensed welding professionals and heavy fabrication shops install and operate this gun.

The 1044-1139 is engineered for high-heat welding applications across a wide range of industries. Typical deployment includes shipbuilding and offshore yard work, tank and pressure vessel fabrication, general manufacturing, automotive body work, and aerospace component fabrication. The ergonomic handle design reduces operator fatigue during extended welding sessions, and the thick conductor tube construction lowers the risk of damage from accidental drops. The gun is well-suited for heavy-duty fabrication environments where consistent wire feedability and long consumable life are priorities, including reliable feeding of soft wire types.

Key Features

• Rated 500 A at 100% duty cycle with mixed gas and 550 A at 100% duty cycle with CO2
• Water-cooled design with advanced conductor tube cooling channels for rapid heat dissipation
• Front-end wear part life up to five times longer than comparable gas-cooled MIG guns
• Euro-Kwik connection adapts with most competitive wire feeders
• Accepts wire diameters from 0.035 inches to 1/16 inch, including soft wire types
• Thick conductor tube construction reduces risk of damage from accidental drops
• Ergonomic, easy-grip handle designed for operator comfort during heavy-duty use

Compatibility

Designed for use with wire feeders accepting a Euro-Kwik connection. Compatible wire diameter range is 0.035 inches to 1/16 inch. Consult the accessories list for compatible contact tips, contact tip holders, gas nozzles, and other front-end consumables specific to this gun model.

Installation Notes

Installation and setup should be performed by a qualified welding professional familiar with water-cooled MIG gun systems. Always shut off the wire feeder power and disconnect the water cooling supply before connecting or servicing the gun. Ensure water inlet and outlet fittings are fully seated and leak-free before initiating a weld. Follow all applicable AWS and facility safety guidelines for MIG welding equipment.

Technical Specifications

• Amperage (Mixed Gas, 100% Duty Cycle): 500 A
• Amperage (CO2, 100% Duty Cycle): 550 A
• Gun Length: 15 ft
• Wire Diameter Range: 0.035 inches to 1/16 inch
• Connection Type: Euro-Kwik
• Cooling Type: Water-cooled
• Package Weight: 10.55 pounds
• Package Length: 20.2 inches
• Package Width: 3.1 inches
• Package Height: 15.1 inches
• UPC: 662067228157

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1044-1139
