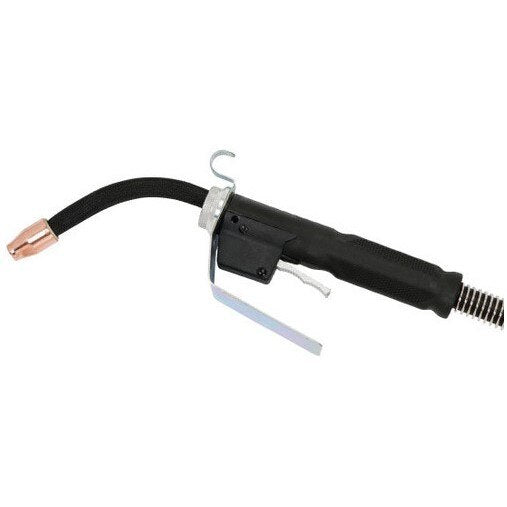

Tweco 1041-1120 Gasless Flux-cored Mig Gun 450 Amp 15 Ft

Product Description

The TWECO 1041-1120 is a 450-amp gasless flux-cored MIG gun designed for heavy-duty industrial welding applications. Built for use with all gasless (self-shielded) flux-cored wires, it delivers consistent arc performance without shielding gas. The gun features a 15-foot cable assembly with a rugged power cable constructed for abrasion and heat resistance. A micro-switch trigger design provides reliable start and stop wire feed control. Front-end consumables are heavy-duty rated and interchangeable with other leading flux-cored guns, reducing downtime when replacements are needed. Licensed welders and fabricators working in demanding production environments will find this gun suited for sustained, high-output work.

The 1041-1120 is suited for shipyards, offshore fabrication facilities, steel industry operations, repair and maintenance shops, and general industrial and automotive fabrication. The one-piece handle design allows the trigger to be positioned at the top or bottom of the handle, accommodating different welding positions and operator preferences. The replaceable conduit and four spare trigger lead wires stored within the cable assembly support field serviceability during extended use.

Key Features

• 450-amp output rated at 60 percent duty cycle using CO2 gas
• Compatible with all gasless self-shielded flux-cored wires up to 1/8 inch diameter
• High impact-resistant one-piece handle with top or bottom trigger positioning
• Metal paddle-style trigger lever with micro-switch for reliable start/stop wire feed
• Spare trigger leads stored inside the cable assembly for field serviceability
• Heavy-duty front-end consumables interchangeable with other leading flux-cored guns
• Rugged power cable with proven abrasion and heat resistance over 15 feet

Compatibility

Designed for use with all gasless self-shielded flux-cored wires and features standard front-end consumables interchangeable with other leading flux-cored MIG guns in heavy-duty industrial applications.

Installation Notes

Installation and setup should be performed by a qualified welder or welding equipment technician. Disconnect and de-energize the welding power source before connecting or servicing the gun cable assembly. Verify that the wire feeder drive roll size matches the wire diameter being used before operation. Follow applicable AWS and OSHA safety standards for welding equipment setup and personal protective equipment requirements.

Technical Specifications

• Amperage: 450 amps
• Duty Cycle: 60 percent at rated amperage using CO2 gas
• Wire Compatibility: All gasless self-shielded flux-cored wires up to 1/8 inch
• Cable Length: 15 feet
• Package Length: 23.2 inches
• Package Width: 6.3 inches
• Package Height: 14.7 inches
• Weight: 15.65 pounds
• Sold As: Each

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1041-1120
