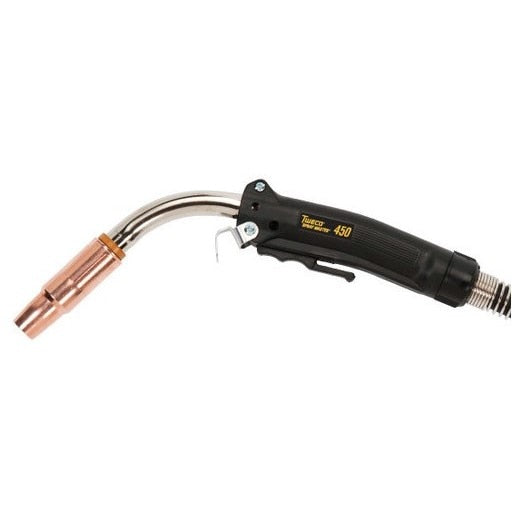

Tweco 1040-1533 Mig Gun 450A 15 Ft Lincoln Style

Product Description

The TWECO 1040-1533 is a Spray Master Series MIG welding gun rated at 450 amps and designed for spray transfer and pulse welding applications. It accepts wire sizes from 0.045 to 1/16 inches and features a 15-foot power cable with a Lincoln-style rear connection and Knucklehead Conductor Tube. The air-cooled gun delivers an 80% duty cycle when used with argon/CO2 or mixed gases. A compact, ergonomic handle reduces operator fatigue during extended use. The split-half handle case and field-repairable mechanical cable connections make on-site service straightforward for experienced welders and maintenance technicians.

This MIG gun is suited for a wide range of professional and shop welding environments, including fabrication, production welding, maintenance and repair, and farm or garage use. The Lincoln-style rear plug connection simplifies integration with compatible wire feeders and welding systems. The extended trigger design keeps the operator's hand farther from the arc, reducing radiated heat exposure during long welding runs. Front and rear spring strain relief supports the cable at both ends, minimizing wire feed issues in demanding applications.

Key Features

• 450A rating with 80% duty cycle using mixed argon/CO2 gases
• Accepts wire sizes 0.045 to 1/16 inches for versatile filler metal compatibility
• Thick-walled, three-layer conductor tube improves electrical conductivity and acts as a heat sink
• Heavy-duty contact tip and diffuser extend tip life and reduce downtime during tip changes
• Steel spring strain relief at front and rear minimizes wire feed issues
• Field-repairable split-half handle case provides quick access for on-site maintenance
• Interchangeable front-end consumables compatible with Tweco Classic No. Series guns

Compatibility

Designed for use with Lincoln-style rear connection wire feeders and welding power sources. Compatible with the Tweco Classic No. Series consumables through interchangeable front-end components, as stated by the manufacturer.

Installation Notes

Installation and service should be performed by a qualified welding technician or electrician familiar with MIG welding equipment. Power down and disconnect the welding power source before making any cable or connection changes. The simplified direct rear plug connection should be fully seated and secured before initiating any weld. Follow applicable AWS and equipment manufacturer guidelines for safe operation and inspection intervals.

Technical Specifications

• Amperage Rating: 450A
• Duty Cycle: 80% with argon/CO2 mixed gases
• Wire Size Range: 0.045 to 1/16 inches
• Cable Length: 15 feet
• Rear Connection Style: Lincoln style
• Cooling Method: Air-cooled
• Package Weight: 12.6 pounds
• Package Length: 23.3 inches
• Package Width: 14.3 inches
• Package Height: 3.3 inches
• UPC: 608246414843

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1040-1533
