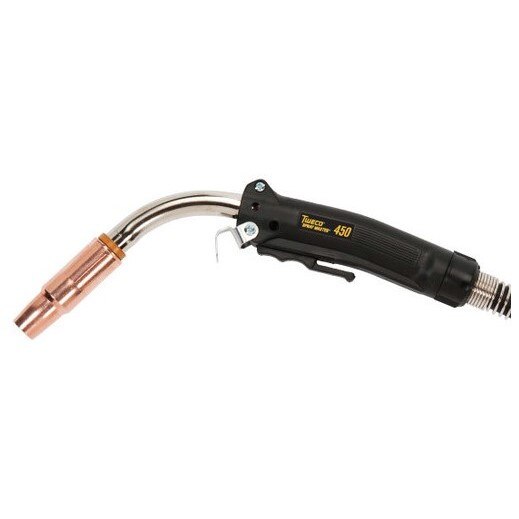

Tweco 1040-1531 Mig Welding Gun 450A 15 Ft Miller

Product Description

The TWECO 1040-1531 is a Spray Master Series air-cooled MIG welding gun rated at 450 amps with an 80% duty cycle using argon/CO2 or mixed gases. It accepts wire diameters from 0.045 inches to 1/16 inches and ships with a 15-foot power cable featuring a Miller style rear connection and Knucklehead Conductor Tube. The gun is built around a thick-walled, three-layer conductor tube that improves electrical conductivity and acts as a heat sink, reducing heat buildup in the handle and front end. Licensed welding professionals and production welders install this gun on compatible Miller-style wire feeders for spray transfer and pulse welding applications.

The 1040-1531 is suited for spray transfer and pulse welding in a range of environments including fabrication shops, maintenance and repair operations, and production welding settings. The simplified direct rear plug supports fast installation and swap-out. The extended trigger design keeps the operator hand farther from the arc, reducing radiated heat exposure during longer welding sessions. The split-half handle case allows field-level repair without returning the gun to a service center, lowering total cost of ownership in high-use operations.

Key Features

• 450-amp rating with 80% duty cycle on argon/CO2 or mixed gases
• Accepts wire sizes 0.045 inches to 1/16 inches
• Thick-walled three-layer conductor tube improves electrical conductivity and acts as heat sink
• Heavy-duty contact tip and diffuser extend tip life and reduce downtime during tip changes
• Extended trigger length reduces operator hand exposure to radiated arc heat
• Split-half handle case allows field repair without specialized tooling
• Steel spring strain relief at rear minimizes wire feed issues at the cable exit point
• Front end consumables are interchangeable with Tweco Classic No. Series guns

Compatibility

Designed for use with Miller style rear connection wire feeders. Front end consumables are interchangeable with Tweco Classic No. Series and Tweco Spray Master Series guns.

Installation Notes

Installation should be performed by a qualified welding technician familiar with MIG gun cable connections and wire feeder setup. Disconnect power to the wire feeder before removing or installing the gun. Verify the rear plug connection is fully seated before resuming operation. Inspect the cable, strain relief, and conductor tube for damage before each use.

Technical Specifications

• Amperage: 450 amps
• Duty Cycle: 80% with argon/CO2 or mixed gases
• Wire Diameter Range: 0.045 inches to 1/16 inches
• Cable Length: 15 feet
• Cooling Method: Air-cooled
• Rear Connection Style: Miller style with Knucklehead Conductor Tube
• Weight: 11.6 pounds

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1040-1531
