Tweco 1040-1342 Mig Gun 450A 15 Ft Air Cooled

Product Description

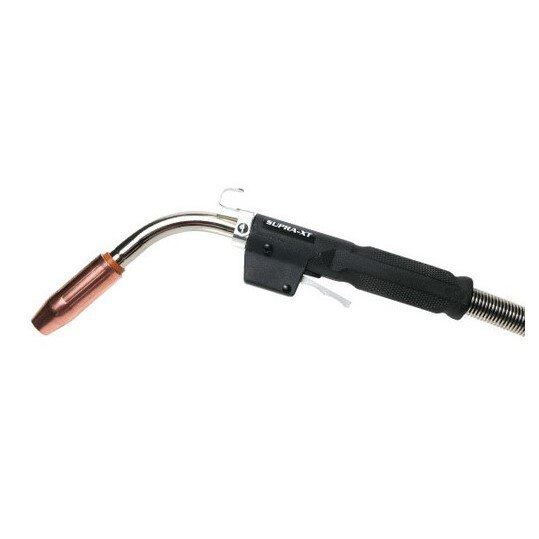

The TWECO 1040-1342 is a SUPRA XT Series air-cooled MIG gun rated at 450 amps with a 15-foot lead cable. It accommodates wire up to 1/16 inch and is designed for semi-automatic MIG welding in medium to heavy-duty fabrication environments. The gun features a 60-degree metal jacket conductor tube that swivels 360 degrees around the handle and is built with three-layer construction for durability. A fully insulated Mig-Kwik connection enables quick hookup and disconnection at the wire feeder. Licensed welders and fabrication professionals working in production and maintenance settings are the primary installers and operators.

The 1040-1342 is suited for medium and heavy-duty fabrication across a wide range of environments including shops, maintenance and repair operations, and production facilities. The 15-foot Cablehoz lead cable includes a Miller-style rear connection, making it compatible with Miller wire feeder setups. The gun supports spray transfer and pulse modes and operates with straight CO2 or mixed shielding gases. Front and rear spring strain relief protects the cable from kinking during demanding multi-position welding work.

Key Features

• 450 amp output with 60% duty cycle rating using CO2 gas
• Three-layer conductor tube construction: copper tube, silicon-resin glass insulator, and metal jacket
• 360-degree swiveling 60-degree metal jacket conductor tube for positional welding
• Micro-switch trigger with button-style switch and metal paddle lever; usable as top or bottom trigger
• Fully insulated Mig-Kwik connection for fast hookup and disconnection at the wire feeder
• Field-repairable mechanical cable connections and spare trigger leads housed in Cablehoz
• Front and rear spring strain relief with cable support to eliminate kinking

Compatibility

Features a Miller-style rear connection for use with compatible Miller wire feeder equipment. Designed for semi-automatic MIG welding applications in medium to heavy-duty fabrication settings.

Installation Notes

Installation and setup should be performed by a qualified welding technician or licensed tradesperson. Disconnect and de-energize the wire feeder before connecting or disconnecting the gun at the rear fitting. Verify the rear connection style matches the wire feeder before use. Inspect the Cablehoz and conductor tube for wear before placing the gun into service.

Technical Specifications

• Amperage: 450 amps
• Duty Cycle: 60% with CO2 gas
• Wire Capacity: Up to 1/16 inch
• Cable Length: 15 feet
• Cooling Method: Air cooled
• Conductor Tube Angle: 60 degrees
• Rear Connection Style: Miller style
• Package Weight: 12.18 pounds
• Package Length: 23.1 inches
• Package Width: 14.2 inches
• Package Height: 3.3 inches
• UPC: 608246310145

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1040-1342
