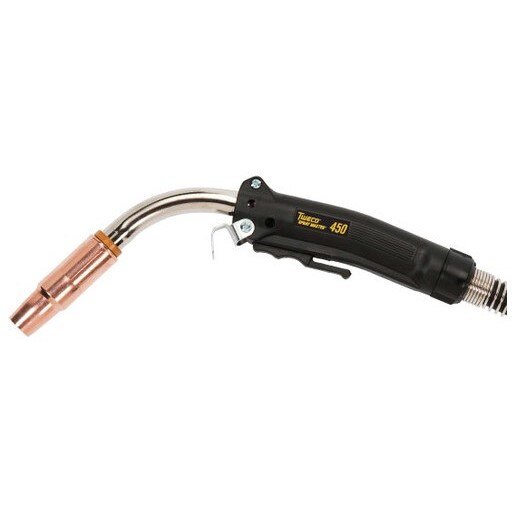

Tweco 1040-1072 Mig Welding Gun 450A 15 Ft

Product Description

The TWECO 1040-1072 is a Spray Master Series MIG gun rated at 450 amps and designed for demanding spray transfer and pulse welding applications. The gun accepts wire sizes from 0.045 inches to 1/16 inches and ships with a 15-foot power cable terminated in a Lincoln-style rear connection. A thick-walled, three-layer conductor tube improves electrical conductivity and doubles as a heat sink, keeping handle temperatures manageable during extended runs. The air-cooled design delivers an 80% duty cycle when used with argon or argon/CO2 mixed gases. Licensed welders and professional MIG welders in production, fabrication, and maintenance shops are the primary installers of this gun.

The 1040-1072 suits a wide range of work environments including production shops, maintenance and repair facilities, farm operations, and general fabrication. It performs in both spray transfer mode and pulse welding with straight CO2 or mixed shielding gases. The simplified direct rear plug allows straightforward cable routing and connection to compatible Lincoln-style wire feeders. The extended trigger and compact ergonomic handle reduce operator fatigue during long welding sessions. Front and rear spring strain relief protect the cable and minimize wire feed disruptions at both ends of the handle assembly.

Key Features

• 450-amp air-cooled output with 80% duty cycle rating on mixed gases
• Accepts 0.045-inch to 1/16-inch wire diameters
• Thick-walled three-layer conductor tube for higher electrical conductivity and heat dissipation
• Heavy-duty contact tip and diffuser extend consumable life and reduce downtime during tip changes
• Lincoln-style direct rear plug for simplified installation on compatible feeders
• Split-half handle case allows full field repair without returning the gun for service
• Steel spring strain relief at front and rear minimizes wire feed issues and cable fatigue
• Front-end consumables are interchangeable with Tweco Classic No. Series guns to lower spare parts inventory

Compatibility

Designed for use with Lincoln-style wire feeder connections. Front-end consumables are interchangeable with Tweco Classic No. Series and Tweco Spray Master Series MIG guns. An optional mechanical locking trigger variant is available and identified by the LC suffix on the part number.

Installation Notes

Installation should be performed by a qualified welding technician or licensed professional familiar with MIG equipment. Disconnect and de-energize the wire feeder before attaching or removing the gun cable. Verify that the rear plug connection is fully seated and that strain relief fittings are secure at both the handle and feeder ends before initiating a weld. Follow the wire feeder and power source manufacturer guidelines along with applicable OSHA and NFPA 70E electrical safety requirements during setup and service.

Technical Specifications

• Amperage: 450 amps
• Duty Cycle: 80% at rated amperage with mixed gases
• Wire Size Range: 0.045 inches to 1/16 inches
• Cable Length: 15 feet
• Cooling Method: Air-cooled
• Rear Connection Style: Lincoln style
• Package Weight: 12.16 pounds
• Package Length: 23.3 inches
• Package Width: 14.3 inches
• Package Height: 3.3 inches

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1040-1072
