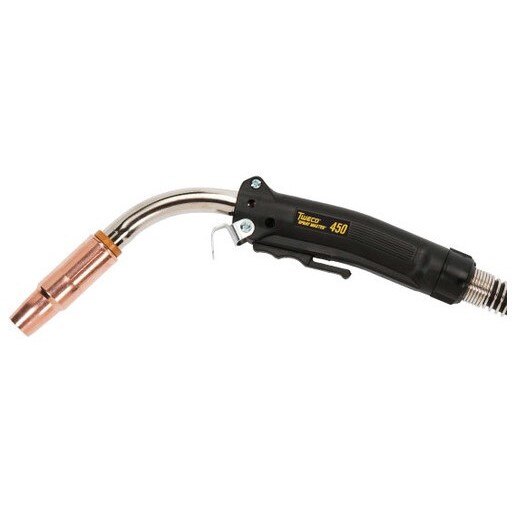

Tweco 1040-1064 Mig Welding Gun 450A 20 Ft Miller

Product Description

The TWECO 1040-1064 is a 450-amp air-cooled MIG welding gun designed for spray transfer and pulse welding applications in professional and production environments. It accepts wire diameters from 0.045 inches to 1/16 inches and ships with a 20-foot power cable featuring a Miller-style rear connection for direct rear plug installation. The gun is rated at 80% duty cycle with argon/CO2 mixed gases. A thick-walled, three-layer conductor tube improves electrical conductivity and acts as a heat sink, keeping handle temperatures lower during extended use. The split-half handle case allows field repair without returning the gun to a service center.

This gun suits production welding, maintenance and repair, shop fabrication, and light industrial applications. The extended trigger design keeps the operator's hand farther from the arc to reduce radiated heat exposure. The ergonomic handle is balanced to pivot at the center, reducing operator fatigue across multiple welding positions. The steel spring strain relief at both the front and rear of the handle minimizes wire feed issues and protects the cable at the exit point. The heavy-duty contact tip and diffuser are rated for high-heat application cycles and are designed to be interchangeable with Tweco Classic No. Series front-end consumables, reducing spare-parts inventory requirements.

Key Features

• 450-amp output with 80% duty cycle rating using mixed argon/CO2 gases
• Accepts wire diameters from 0.045 inches to 1/16 inches
• 20-foot power cable with Miller-style direct rear plug connection
• Thick-walled three-layer conductor tube improves conductivity and dissipates heat
• Extended trigger keeps hand away from arc, reducing radiated heat exposure
• Split-half handle case allows full field repair and mechanical cable access
• Front-end consumables are interchangeable with Tweco Classic No. Series guns

Compatibility

Designed for use with Miller-style MIG welding power sources. Front-end consumables are interchangeable with Tweco Classic No. Series and Tweco Spray Master Series guns.

Installation Notes

Installation and service should be performed by a qualified welding technician or electrician familiar with MIG welding equipment. Power down and disconnect the welding power source completely before connecting or servicing the gun. Verify that the rear plug connection is fully seated and secured before initiating a weld. Follow applicable AWS and equipment manufacturer guidelines for cable routing and strain relief positioning.

Technical Specifications

• Amperage: 450 amps
• Duty Cycle: 80% (mixed argon/CO2 gases)
• Wire Diameter Range: 0.045 inches to 1/16 inches
• Cable Length: 20 feet
• Cooling Type: Air-cooled
• Rear Connection Style: Miller style direct rear plug
• Weight: 14.3 pounds

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1040-1064
