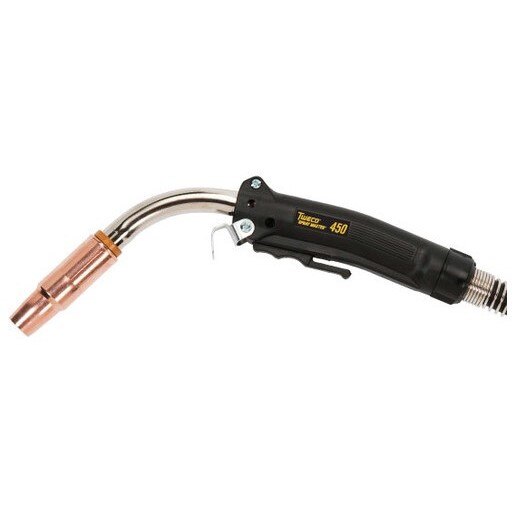

Tweco 1040-1063 Mig Gun 450A 15 Ft Miller Connection

Product Description

The TWECO 1040-1063 is a heavy-duty, air-cooled MIG welding gun rated at 450 amps and built for spray transfer and pulse welding applications. Designed around the Spray Master Series platform, it accepts wire diameters from 0.045 inches to 1/16 inches and features a 15-foot power cable with a Miller-style direct rear plug connection for straightforward installation. The gun delivers an 80% duty cycle when used with argon and CO2 mixed gases, making it well suited for sustained production welding. A thick-walled, three-layer conductor tube improves electrical conductivity and acts as a heat sink to manage thermal load in demanding applications.

The 1040-1063 fits a broad range of industrial and production welding environments, including fabrication shops, maintenance and repair operations, and farm or garage settings. The extended trigger keeps the operator's hand farther from the arc to reduce radiated heat exposure. A steel spring strain relief at the rear of the handle minimizes wire feed issues from the cable exit point. The split-half handle case and field-repairable mechanical cable connections make servicing straightforward without returning the gun to a shop. Front and rear spring strain relief and cable support protect the assembly at both ends.

Key Features

• Thick-walled, three-layer conductor tube for higher electrical conductivity and heat-sink performance
• Heavy-duty contact tip and diffuser extend tip life and reduce downtime during tip changes
• Handle balanced to pivot at center for reduced operator fatigue across multiple welding positions
• Extended trigger length keeps the operator's hand away from arc heat
• Steel spring strain relief at cable exit minimizes wire feed problems
• Field-repairable split-half handle case allows on-site servicing without special tooling
• Front end consumables are interchangeable with Tweco Classic No. Series guns to reduce spare parts inventory

Compatibility

Designed for use with Miller-style welding systems via direct rear plug connection. Compatible with 0.045-inch to 1/16-inch wire diameters using straight CO2 or mixed argon and CO2 shielding gases in spray transfer and pulse welding modes.

Installation Notes

Installation and service should be performed by a qualified welding technician or electrician familiar with applicable NFPA and AWS safety standards. Shut down and disconnect power to the wire feeder and welding power source before connecting or servicing the gun. Verify that the rear plug style matches the feeder receptacle before attempting connection. Inspect the cable assembly, strain relief, and contact tip seating after installation and before returning the system to service.

Technical Specifications

• Amperage: 450 amps
• Duty Cycle: 80% at rated amperage with mixed argon and CO2 gases
• Cable Length: 15 feet
• Wire Diameter Range: 0.045 inches to 1/16 inches
• Cooling Method: Air-cooled
• Rear Connection Style: Miller-style direct rear plug
• Width: 23.3 inches
• Height: 23 inches
• Length: 3.3 inches
• Weight: 11.85 pounds
• Sold As: Each

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1040-1063
