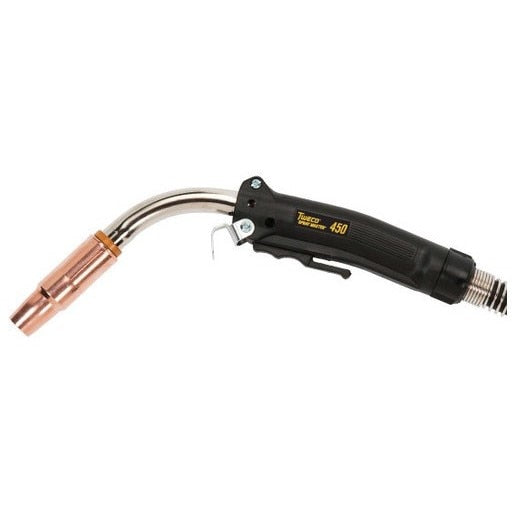

Tweco 1040-1060 Mig Gun 450A 10 Ft Miller Connection

Product Description

The TWECO 1040-1060 is a Spray Master Series air-cooled MIG gun rated at 450 amps with an 80% duty cycle on argon/CO2 mixed gases. It accepts wire diameters from 0.045 inches to 1/16 inches and features a 10-foot power cable with a Miller-style direct rear plug connection. The conductor tube is thick-walled and three-layer construction, acting as a heat sink to reduce front-end temperatures during extended runs. A heavy-duty contact tip and diffuser extend consumable life and reduce downtime during tip changes. Licensed welders and industrial MIG operators install this gun in high-amperage spray transfer and pulse welding setups.

The 1040-1060 is suited for spray transfer and pulse welding applications using straight CO2 or mixed shielding gases. Its ergonomic, balanced handle pivots at the center to reduce operator fatigue across multiple welding positions. The extended trigger keeps the hand farther from the arc to lower radiated heat exposure. Typical use environments include fabrication shops, maintenance and repair operations, and production welding. Front and rear spring strain relief protect the cable at both ends, supporting consistent wire feedability over long service cycles.

Key Features

• 450 A output with 80% duty cycle rating on argon/CO2 mixed gases
• Accepts wire sizes 0.045 inches to 1/16 inches
• Thick-walled, three-layer conductor tube for higher electrical conductivity and heat dissipation
• Heavy-duty contact tip and diffuser for extended tip life in high-heat applications
• Miller-style direct rear plug for simplified installation and cable connection
• Split-half handle case and field-repairable mechanical cable connections for on-site maintenance
• Steel spring strain relief at both front and rear to minimize wire feed issues

Compatibility

Features a Miller-style rear connection. Front-end consumables are interchangeable with Tweco Classic No. Series and Tweco Spray Master Series components. Designed as an OEM-style replacement or upgrade MIG gun for Miller-connected wire feeders and welding systems.

Installation Notes

Installation should be performed by a qualified welder or welding equipment technician. Disconnect and power down the welding power source completely before connecting or disconnecting the gun cable. Ensure the rear plug is fully seated and secured before initiating a weld. Follow applicable AWS and manufacturer guidelines for MIG gun installation and replacement.

Technical Specifications

• Amperage: 450 A
• Duty Cycle: 80% with argon/CO2 mixed gases
• Wire Size Range: 0.045 inches to 1/16 inches
• Cable Length: 10 feet
• Cooling Method: Air-cooled
• Rear Connection Style: Miller style direct rear plug
• Weight: 8.75 pounds
• Length: 23.1 inches
• Width: 3.2 inches
• Height: 14.2 inches
• Sold As: Each

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1040-1060
