Tweco 1040-1059 Mig Welding Gun 450A 20 Ft Spray Master

Product Description

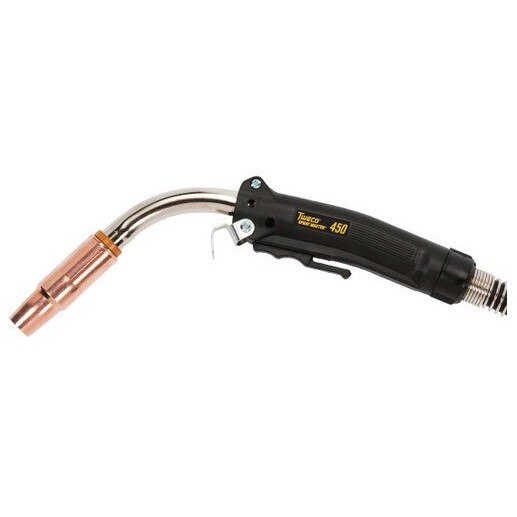

The TWECO 1040-1059 is a 450-amp, air-cooled MIG welding gun from the Spray Master Series, designed for high-amperage spray transfer and pulse welding applications. It accommodates wire sizes from 0.045 to 1/16 inches and ships with a 20-foot power cable featuring a Tweco-style rear connection for direct plug-in installation. Rated at 80% duty cycle with argon/CO2 mixed gases, the gun is built around a thick-walled, three-layer conductor tube that improves electrical conductivity and acts as a heat sink. The compact, ergonomic handle is balanced to pivot at its center, reducing operator fatigue during extended welding sessions. Licensed welding professionals and industrial fabricators are the primary installers and operators.

The 1040-1059 suits a wide range of settings including production fabrication, maintenance and repair, farm and shop work, and artistic metalworking. Its heavy-duty contact tip and diffuser are engineered specifically for high-heat environments common in spray transfer and pulse welding. The gun supports straight CO2 or mixed shielding gases, making it adaptable across common MIG processes. The front-end consumables are interchangeable with the Tweco Classic No. Series, reducing the number of spare parts a shop needs to stock. Field-repairable split-half handle construction allows in-shop servicing without sending the gun out.

Key Features

• Thick-walled, three-layer conductor tube improves electrical conductivity and dissipates heat
• Heavy-duty contact tip and diffuser extend tip life and reduce changeover downtime
• Handle balanced at center pivot for reduced operator fatigue across welding positions
• Extended trigger length keeps the hand farther from the arc to lower radiated heat exposure
• Steel spring strain relief at front and rear minimizes wire feed issues at the cable exit
• Split-half handle case allows full field repair without specialized tooling
• Front-end consumables interchange with Tweco Classic No. Series guns to consolidate inventory

Compatibility

Front-end consumables are interchangeable with the Tweco Classic No. Series and Tweco Spray Master Series. An optional mechanical locking trigger variant is available, identified by the LC suffix in the part number. Compatible with standard Tweco-style rear wire feeder connections.

Installation Notes

Installation and operation should be performed by a qualified welding professional familiar with MIG process equipment and applicable AWS safety standards. Before servicing or changing consumables, shut off the shielding gas supply and disconnect the gun from the wire feeder and power source. Ensure the rear plug connection is fully seated and the cable is routed without sharp bends to maintain wire feedability. Always verify duty cycle ratings against the intended welding schedule before sustained high-amperage operation.

Technical Specifications

• Amperage: 450 amps
• Duty Cycle: 80% with argon/CO2 mixed gases
• Wire Size Range: 0.045 to 1/16 inches
• Cable Length: 20 feet
• Cooling Method: Air-cooled
• Rear Connection: Tweco-style direct rear plug
• Package Weight: 14 pounds
• Package Length: 23.1 inches
• Package Width: 14.6 inches
• Package Height: 3.5 inches
• Sold As: Each

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1040-1059
