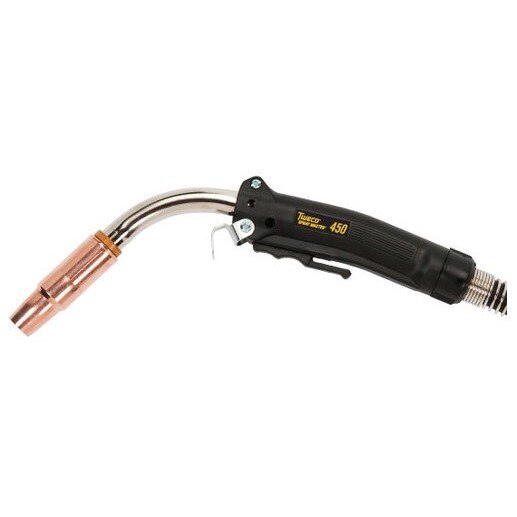

Tweco 1040-1050 Mig Welding Gun 450A 10 Ft Cable

Product Description

The TWECO 1040-1050 is a heavy-duty, air-cooled MIG welding gun rated at 450 amps and designed for spray transfer and pulse welding applications. The gun ships with a 10-foot power cable featuring a Tweco-style rear connection and a simplified direct rear plug for fast installation. Wire feed range spans 0.045 to 1/16 inches, and the gun is rated at 80% duty cycle when used with argon/CO2 or mixed gas blends. A thick-walled, three-layer conductor tube improves electrical conductivity and acts as a heat sink to manage thermal load during extended runs. The ergonomic, balanced handle pivots at its center, reducing operator fatigue during multi-position welding. Professional welders and fabrication shops performing high-amperage continuous welds are the primary users of this gun.

The 1040-1050 is suited for a wide range of environments including production fabrication, maintenance and repair, farm and shop work, and artistic metalworking. Its compatibility with both spray transfer and pulse welding modes makes it a versatile choice for operations running mixed-gas or straight CO2 shielding. The extended trigger keeps the operator hand away from the arc, reducing radiated heat exposure during long welds. Front and rear spring strain relief protect the cable assembly at both ends, and the split-half handle case gives technicians field access for quick repairs without returning the gun to a service center. Interchangeable front-end consumables are compatible with both the Tweco Classic No. Series and the Tweco Spray Master Series, reducing the number of spare parts that need to be stocked.

Key Features

• 450A air-cooled design rated at 80% duty cycle with argon/CO2 mixed gases
• Thick-walled, three-layer conductor tube improves electrical conductivity and acts as a heat sink
• Heavy-duty contact tip and diffuser extend tip life and reduce downtime from tip changes
• Ergonomic handle balanced at center pivot point reduces operator fatigue across welding positions
• Extended trigger length keeps hand farther from the arc to limit radiated heat exposure
• Split-half handle case allows field repair without specialized tooling
• Front-end consumables are interchangeable with Tweco Classic No. Series guns, lowering spare-part inventory costs

Compatibility

Front-end consumables are interchangeable with both the Tweco Classic No. Series and the Tweco Spray Master Series. The gun accepts wire sizes from 0.045 to 1/16 inches and is compatible with spray transfer mode and pulse welding using straight CO2 or mixed shielding gases.

Installation Notes

Installation is performed by a qualified welder or welding equipment technician. Before connecting or servicing the gun, the wire feeder and welding power source must be powered down and the gas supply closed. The direct rear plug connects to compatible Tweco-style wire feeders without additional adapters. Ensure all cable connections are fully seated and strain relief fittings are secure before resuming operation.

Technical Specifications

• Amperage Rating: 450A
• Duty Cycle: 80% with mixed gases
• Wire Size Range: 0.045 to 1/16 inches
• Cable Length: 10 feet
• Cooling Method: Air-cooled
• Connection Style: Tweco-style direct rear plug
• Package Weight: 8.85 pounds
• Package Length: 23.1 inches
• Package Width: 14.2 inches
• Package Height: 3.2 inches

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1040-1050
