Tweco 1036-1787 Mig Gun 350A 25 Ft Air Cooled Gmaw Fcaw

Product Description

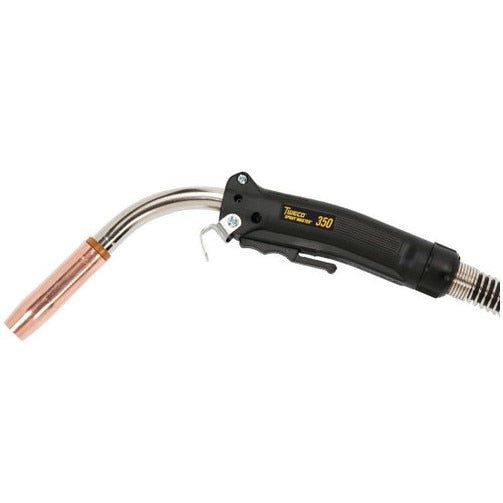

The TWECO 1036-1787 is the VELOCITY2a Spray Master V350 MIG gun rated at 350 amps with a 60 percent duty cycle and a 25-foot cable assembly. It is air cooled and ships with VELOCITY2 front end consumables pre-assembled. The gun accepts wire up to 1/16 inch and uses a Tweco rear connector for straightforward connection to compatible wire feeders. Licensed HVAC and welding professionals recognize the 42 Series conduit liner as a proven component in high-output GMAW and FCAW setups. This gun is suited for production and heavy fabrication environments where arc stability and consumable longevity are priorities.

The 1036-1787 is designed for GMAW, FCAW, and aluminum GMAW applications in both shop and field welding scenarios. The Spray Master V350 designation targets spray-transfer processes at higher amperages, making it a practical choice for structural steel, heavy plate, and aluminum fabrication. The 25-foot cable length provides working room in tight or large-bay environments without excessive voltage drop. The Tweco rear connector interfaces with a wide range of industrial wire feeders commonly found in production welding cells.

Key Features

• 350A output rating at 60 percent duty cycle for sustained high-amperage welding
• Gas ported VELOCITY2 contact tips run cooler and extend service life compared to standard tips
• Tool-free, threadless VELOCITY tip installation reduces changeover time at the gun
• Air cooled design eliminates water cooling infrastructure and simplifies setup
• 42 Series conduit liner accommodates wire up to 1/16 inch diameter
• Compatible with GMAW, FCAW, and aluminum GMAW processes via Tweco rear connector

Compatibility

Designed for GMAW, FCAW, and aluminum GMAW applications using a Tweco rear connector; accepts VELOCITY2 front end consumables and a 42 Series conduit liner for wire up to 1/16 inch.

Installation Notes

Installation and service should be performed by a qualified welding technician or maintenance professional. De-energize the wire feeder and disconnect the power source before attaching or removing the gun connector. Verify the conduit liner is fully seated and the rear connector is locked before initiating an arc. Follow applicable AWS and NFPA 70 guidelines for welding equipment hookup in your facility.

Technical Specifications

• Amperage: 350A
• Duty Cycle: 60 percent
• Cable Length: 25 ft
• Maximum Wire Diameter: 1/16 inch
• Cooling Method: Air Cooled
• Connector Type: Tweco Rear Connector
• Conduit Liner Series: 42 Series
• Package Weight: 15.75 pounds
• Package Dimensions: 23 inches x 14 inches x 3.5 inches
• UOM: Each

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1036-1787
