Tweco 1036-1770 Mig Gun 350A 15 Ft Euro-kwik

Product Description

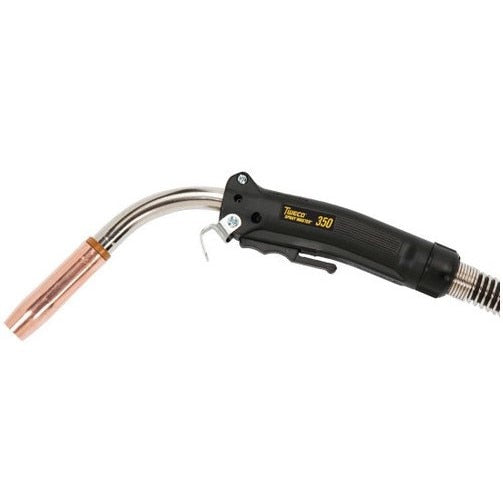

The TWECO 1036-1770 is a VELOCITY2a Spray Master V350 MIG gun rated at 350 amps with a 60% duty cycle. It ships with VELOCITY2 front-end consumables already assembled and accepts a Euro-Kwik rear connector for fast, tool-free hookup to compatible wire feeders. The gas-ported VELOCITY2 contact tips are engineered to run cooler and resist wear longer than standard tips. A 42 Series conduit liner is included. At 11.1 pounds, the gun is built for demanding production welding environments where arc stability and consumable longevity are priorities.

This MIG gun is suited for professional welding applications including GMAW (solid wire), FCAW (flux-cored wire), and aluminum GMAW. The 15-foot cable length gives welders working clearance around fixtures and larger weldments. The Euro-Kwik rear connector makes it compatible with Euro-standard feeder outputs found on many industrial wire feeders. The threadless, tool-free VELOCITY2 contact tip system is designed to reduce changeover time during production runs, making it a practical choice for fabrication shops and industrial maintenance environments.

Key Features

• 350A output rating at 60% duty cycle for sustained production welding
• Gas-ported VELOCITY2 contact tips run cooler and extend consumable service life
• Threadless, tool-free contact tip replacement reduces downtime
• Euro-Kwik rear connector for quick connection to Euro-standard wire feeders
• 42 Series conduit liner included
• VELOCITY2 front-end consumables pre-assembled at the factory

Compatibility

Designed for use with Euro-standard wire feeders supporting GMAW, FCAW, and aluminum GMAW processes. Uses VELOCITY2 series front-end consumables.

Installation Notes

Installation and setup should be performed by a qualified welding technician familiar with GMAW and FCAW equipment. Disconnect and de-energize the wire feeder and welding power source before attaching or removing the gun cable. Verify the Euro-Kwik connector is fully seated and locked before initiating any arc. Inspect the conduit liner and contact tip for proper seating after assembly.

Technical Specifications

• Amperage: 350A
• Duty Cycle: 60%
• Cable Length: 15 ft
• Maximum Wire Diameter: 1/16 inches
• Rear Connector Type: Euro-Kwik
• Conduit Liner: 42 Series
• Processes: GMAW, FCAW, Aluminum GMAW
• Weight: 11.1 pounds

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1036-1770
