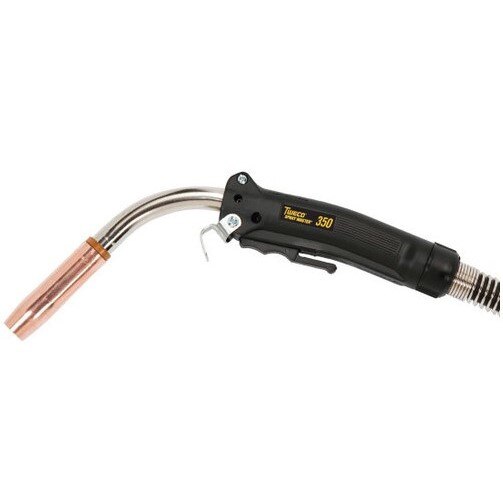

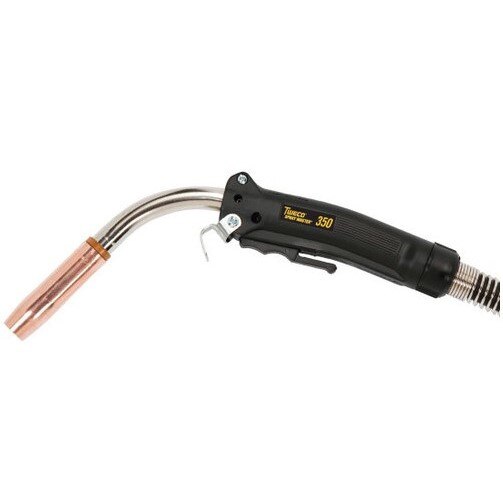

Tweco 1036-1754 Mig Gun 350A 12 Ft Miller Connector

Product Description

The TWECO 1036-1754 is a VELOCITY2a Spray Master V350 MIG gun rated at 350 amps with a 60 percent duty cycle, designed for GMAW, FCAW, and aluminum GMAW applications. The gun ships with VELOCITY2 front end consumables already assembled and includes a Miller-compatible rear connector for direct hookup to compatible Miller wire feeders and power sources. At 12 feet in length, the cable gives welders comfortable working distance on fabrication and production weld joints. Sold as a single unit, this gun is built for professional welders who require consistent arc performance across a range of wire and shielding gas combinations.

This MIG gun is suited for both shop and light industrial environments where semi-automatic GMAW or FCAW processes are run at mid-to-high amperage. The Miller rear connector makes it a direct fit for Miller-platform machines commonly found in fabrication shops, manufacturing facilities, and maintenance welding operations. The VELOCITY2 front end system uses gas-ported contact tips that run cooler than conventional tips and are designed for tool-free replacement, reducing changeover time during production runs.

Key Features

• 350A output rating at 60 percent duty cycle for sustained mid-to-high amperage welding
• Gas-ported VELOCITY2 contact tips run cooler and extend tip service life
• Tool-free tip removal and installation — no threads, no wrench required
• VELOCITY2 front end consumables pre-assembled on delivery
• Miller-compatible rear connector for direct machine hookup
• 42 Series conduit liner included

Compatibility

Configured with a Miller rear connector, making this gun suitable for Miller wire feeders and welding power sources that accept standard Miller-style MIG gun connections. Compatible with GMAW, FCAW, and aluminum GMAW processes.

Installation Notes

Installation should be performed by a qualified welding technician or machine operator familiar with GMAW equipment. Power down and de-energize the welding power source before connecting or disconnecting the gun cable. Verify the rear connector seats fully and is secured before energizing the machine. Inspect the conduit liner and contact tip for proper seating before the first weld pass.

Technical Specifications

• Amperage: 350A
• Duty Cycle: 60 percent
• Cable Length: 12 feet
• Maximum Wire Diameter: 1/16 inch
• Rear Connector: Miller
• Conduit Liner: 42 Series
• Processes: GMAW, FCAW, Aluminum GMAW
• Package Dimensions: 23.25 inches x 14 inches x 3 inches
• Weight: 9.7 pounds
• UPC: 608246433615
• Sold As: Each

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1036-1754
