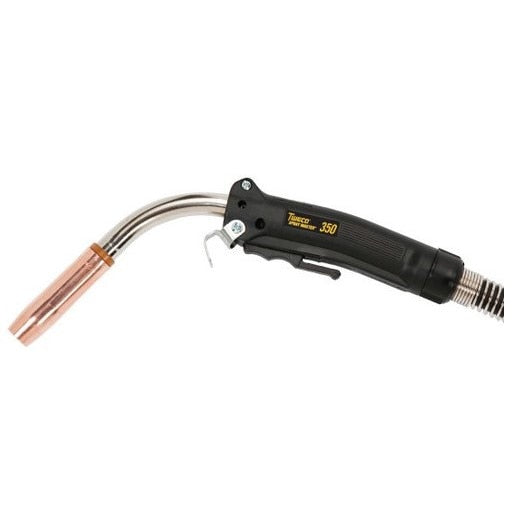

Tweco 1036-1613 Mig Gun 350A 12 Ft Air Cooled

Product Description

The TWECO 1036-1613 is the Spray Master 350A Compact Light MIG Gun, an air-cooled semiautomatic welding gun built for spray transfer and pulse welding applications. It features a thick-walled, three-layer conductor tube that improves electrical conductivity and acts as a heat sink to reduce front-end temperatures. The handle is compact and ergonomic, balanced to pivot at its center for comfortable use across multiple welding positions. A heavy-duty contact tip and diffuser assembly extends consumable life and reduces downtime during tip changes. This gun is rated at 350 amps with an 80 percent duty cycle using straight CO2 or mixed shielding gases. It is intended for installation and use by professional welders and fabricators in production, maintenance, and repair environments.

The 1036-1613 is suited for shop, production, farm, and maintenance and repair applications where spray transfer or pulse welding modes are required. The fully insulated Euro-Kwik drive style connection allows quick connect and disconnect at the wire feeder. Wire size compatibility starts at 1/16 inch. The gun accommodates standard trigger on/off operation and supports optional dual schedule and locking trigger configurations, identified by the LC suffix in the part number. The split-half handle case allows field repair without specialized tooling, and interchangeable front-end consumables are compatible with both Tweco Classic No. Series and Tweco Spray Master Series guns, reducing inventory carrying costs.

Key Features

• Three-layer thick-walled conductor tube improves electrical conductivity and acts as a heat sink
• Heavy-duty contact tip and diffuser assembly extends tip life and reduces tip-change downtime
• 80 percent duty cycle rating at 350A with straight CO2 or mixed gases
• Euro-Kwik drive style connection for quick connect and disconnect at the wire feeder
• Extended trigger length keeps the operator hand farther from the arc to reduce radiated heat exposure
• Steel spring strain relief at rear of handle minimizes wire feed issues from the Cablehoz cable
• Split-half handle case enables field repair and interchangeable front-end consumables reduce inventory costs

Compatibility

Front-end consumables are interchangeable with Tweco Classic No. Series and Tweco Spray Master Series guns. Accepts wire starting at 1/16 inch diameter. Compatible with straight CO2 and mixed shielding gases.

Installation Notes

Installation and connection should be performed by a qualified welder or welding equipment technician familiar with GMAW equipment. Power down and de-energize the wire feeder and welding power source before connecting or disconnecting the gun at the feeder. Verify that the Euro-Kwik connection is fully seated and locked before initiating any weld. Follow the welding equipment manufacturer guidelines and applicable OSHA and AWS safety standards during setup and operation.

Technical Specifications

• Amperage: 350 amps
• Duty Cycle: 80 percent (mixed gases or straight CO2)
• Cooling Method: Air cooled
• Wire Size (minimum): 1/16 inch
• Cable Length: 12 ft
• Connection Type: Euro-Kwik drive style (fully insulated)
• Welding Modes: Spray transfer, pulse welding
• Width: 14.3 inches
• Height: 23.2 inches
• Length: 3.3 inches
• Weight: 9.2 pounds
• UPC: 608246336169

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1036-1613
