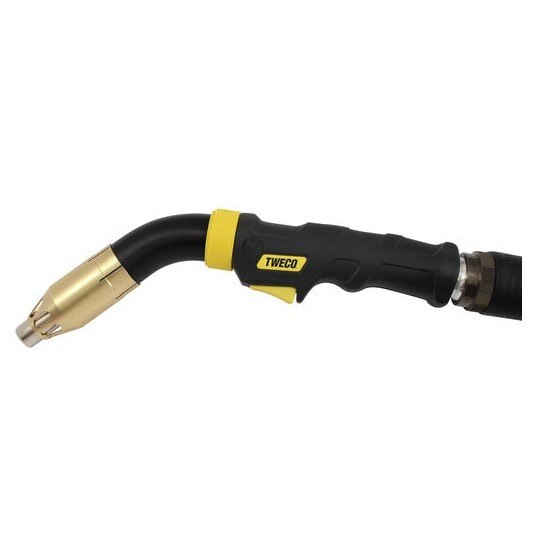

Tweco 1026-1110 Fume Extraction Mig Gun 15 Ft

Product Description

The TWECO 1026-1110 is an air-cooled fume extraction MIG gun designed for welding applications that require active smoke and fume removal at the weld source. Part of the Centrovac 260C series, it accommodates wire diameters from 0.024 to 0.039 inches and ships with a 15-foot cable assembly. A vacuum vent at the front of the handle lets the operator fine-tune extraction rates on the fly, reducing the risk of pulling too much shielding gas in confined or tight weld zones. The back-end design adapts to most competitive wire feeders and blocks fumes from reaching the power connection, lowering long-term maintenance requirements. Licensed welders and fabricators install this gun wherever fume control and operator visibility are production priorities.

The 1026-1110 is suited for light-, medium-, and heavy-duty MIG welding environments where airborne fume concentration is a health and productivity concern. Documented applications include shipbuilding and offshore yard work, tank and vessel fabrication, aerospace component manufacturing, transportation equipment assembly, and general manufacturing. When paired with a compatible extraction system, the Centrovac platform can remove over 95 percent of weld fumes at the source, which directly improves welder visibility and reduces downtime between passes. The ergonomic, knuckle-joint handle accommodates extended use in varied positions without sacrificing control.

Key Features

• Air-cooled fume extraction design removes over 95 percent of fumes when matched with the correct extraction system
• Front-handle vacuum vent allows on-the-fly adjustment of extraction rate to protect shielding gas coverage
• Back-end connector blocks fumes from reaching the power connection, reducing maintenance intervals
• Knuckle-joint, ergonomic handle provides articulate motion and comfortable grip during extended use
• Compatible back-end design adapts to most competitive wire feeders without special modifications
• Optional fume shrouds available for optimized extraction rates in specific weld geometries

Compatibility

Designed as an OEM-style fume extraction MIG gun replacement for use with compatible wire feeders accepting standard back-end connections; consult the Centrovac 260C series documentation for a full list of compatible feeder interfaces.

Installation Notes

Installation should be performed by a qualified welding technician or maintenance professional familiar with MIG gun assemblies. Disconnect and lock out all power to the wire feeder before connecting or disconnecting the gun. Verify that the extraction hose and vacuum system are rated for the application before operating. Follow applicable workplace safety codes and the equipment manufacturer guidelines for fume extraction system setup.

Technical Specifications

• Wire Diameter Range: 0.024 to 0.039 inches
• Cable Length: 15 feet
• Cooling Method: Air-cooled
• Package Weight: 10.01 pounds
• Package Length: 18.9 inches
• Package Width: 19.69 inches
• Package Height: 4.33 inches
• UPC: 608246445298

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1026-1110
