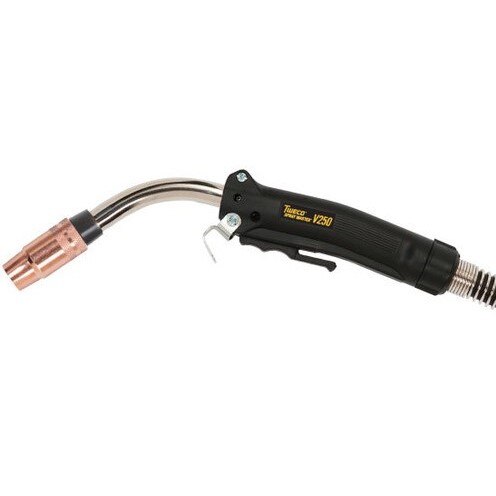

Tweco 1023-1285 Air-cooled Mig Gun 250A 12 Ft Lincoln

Product Description

The TWECO 1023-1285 is an air-cooled MIG gun rated at 250 amps with a 60% duty cycle, designed for GMAW, FCAW, and aluminum GMAW applications. Built around the VELOCITY2a Spray Master V250 platform, this gun ships with VELOCITY2 front-end consumables already assembled and connects to compatible power sources via a Lincoln-style connector. The 12-foot cable length gives welders comfortable working range in light to medium-duty fabrication environments. Gas-ported contact tips are a core design feature, reducing heat buildup and extending tip service life. The threadless tip design allows fast consumable changes without tools.

This MIG gun is suited for light to medium-duty fabrication shops running GMAW solid wire, flux-cored wire (FCAW), or aluminum GMAW processes. Wire diameter compatibility spans 0.035 to 0.045 inches, covering the most common wire sizes used in structural tack work, sheet metal, and general production welding. It pairs with power sources equipped with a Lincoln-style connector. The included standard conductor tube is part number 1240-1374, and the conduit liner is a 42 Series unit.

Key Features

• 250-amp, 60% duty cycle rating suitable for sustained production welding
• Gas-ported VELOCITY2 contact tips run cooler and extend consumable life
• Threadless, tool-free tip removal speeds consumable changeovers
• Compatible with GMAW, FCAW, and aluminum GMAW processes
• Accepts wire diameters from 0.035 to 0.045 inches
• Ships with VELOCITY2 front-end consumables pre-assembled

Compatibility

Designed for use with Lincoln-style connector power sources. Wire compatibility covers 0.035 to 0.045-inch diameter. Includes standard conductor tube 1240-1374 and 42 Series conduit liner. Confirm power source connector type and amperage rating before installation.

Installation Notes

Installation is performed by a qualified welder or welding equipment technician. Power down and disconnect the welding power source before attaching or removing the gun cable. Verify that the liner and contact tip size match the wire diameter being run before first use. Follow the power source manufacturer guidelines and applicable AWS or facility safety codes when setting up the welding circuit.

Technical Specifications

• Amperage: 250 amps
• Duty Cycle: 60%
• Cable Length: 12 feet
• Wire Diameter Range: 0.035 to 0.045 inches
• Cooling Method: Air-cooled
• Connector Style: Lincoln
• Process Compatibility: GMAW, FCAW, Aluminum GMAW
• Conductor Tube: 1240-1374 (standard)
• Conduit Liner: 42 Series
• Weight: 8.9 pounds

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1023-1285
