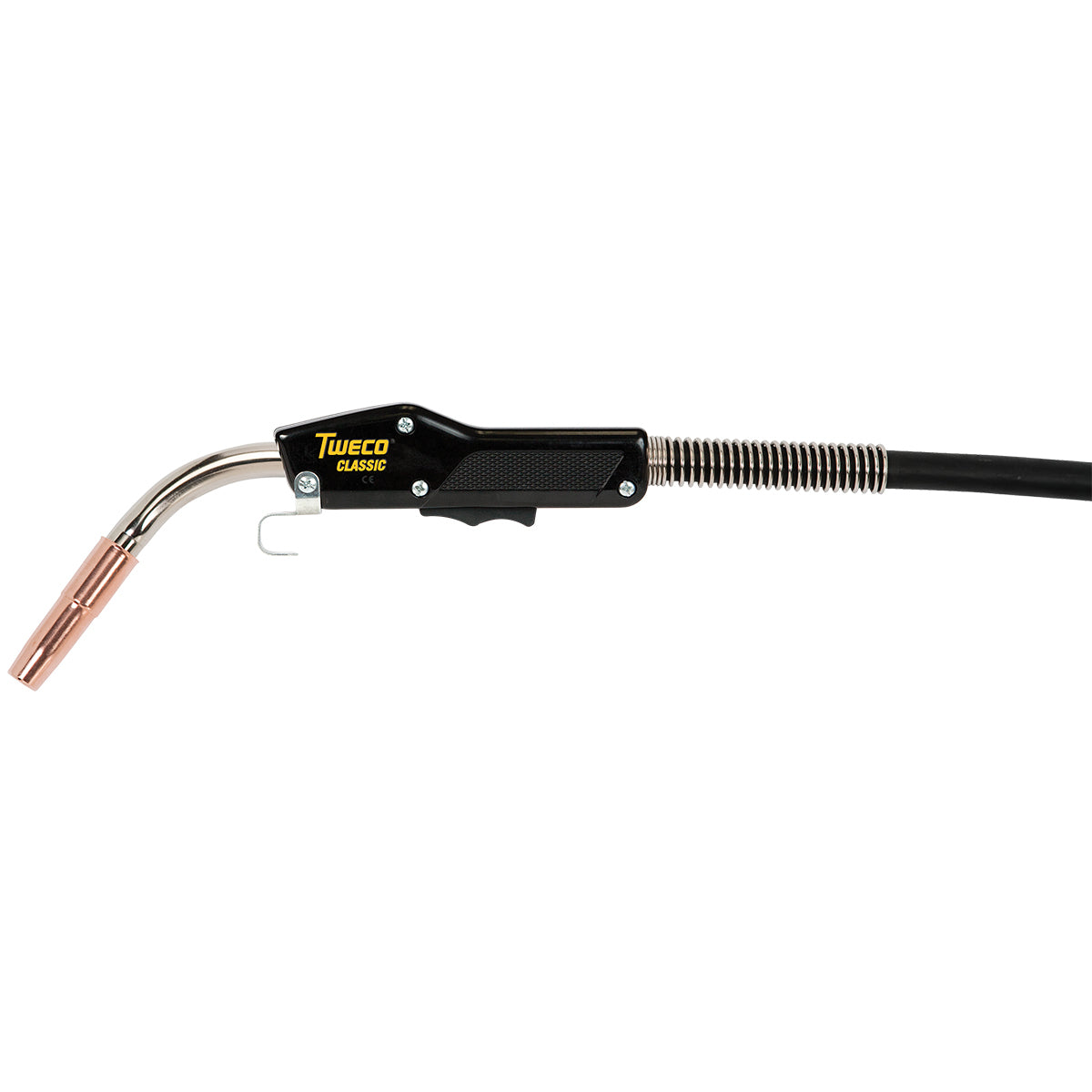

Tweco 10201113 Professional Classic No. 2 200 Amp 0.030 inches - 0.035 inches Air Cooled MIG Gun 15 feet Cable Tweco Style Connector

Product Description

The Tweco 10201113 Professional No. 2 Series 200 A MIG Gun features a heavy-duty contact tip that accommodates wires of size 0.030 - 0.035" and an oval shaped handle with a silver plated trigger. This air-cooled MIG gun is suited for semi-automatic welding applications and medium fabrication. The 15' lead cable offers good wire feedability and a Tweco style rear connection.

• Wide selection of front end consumables available to fit the needs of the application
• Industry standard for 40+ years, oval shaped handle reduces grip required to manipulate MIG gun position
• Balanced to pivot at the center of the handle for ease of use in different welding positions, and thereby reduces operator fatigue

Product Highlights

This Tweco MIG gun is balanced for ease of use, has a gun hanger for resting, and a steel spring strain relief to minimize wire feed issues.

Product Information

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 10201113
• Country of Origin: Mexico

Technical Specifications

• MIG Amperage Range: 200 A
• MIG Wire Size: 0.030" - 0.035"
• Cooling Method: Air Cooled
• Cable Length: 15'
• Rear Connection: Tweco® Style Connector
• Wire Type: Solid, Flux Cored Gas Shielded, Flux Cored Self-Shielded, Aluminum
• Trade Name: Tweco® Professional Classic® No. 2
• Amps: 200 A
• Series: Professional No 2
• Wire Size: 0.023 in, 0.030 in, 0.035 in, 0.045 in
• Duty Cycle: 60 %
• Tip Series: 14 Series / Tweco Threaded
• Application: MIG, FCAW
• Duty Rating: Medium Duty
• Handle Type: Straight
• For Gas Type: CO2 (Carbon Dioxide)
• Liner Series: 42
• MIG Gun Type: Air-Cooled
• Trigger: Standard
• Nozzle Series: 22
• Rotation Deg.: 0 Degrees
• Neck Tube Angle: 60 Degrees
• Wire Feed Type: Push
• Maximum Current: 200 A
• Neck Tube Type: Fixed
• Welding Processes: MIG Welding (GMAW)
• Cable Length (Ft.): 15 ft
• Max. Wire Diameter: 0.035 in
• Neck Tube Material: Metal
• Gas Diffuser Number: 52
• Max. Amperage Range: 150 A - 300 A
• Cable Length (Meters): 5 m
• Compatible with Brand: Tweco
• Compatible with Model: Tweco
• Maximum Wire Diameter: 0.035 in
• Maximum Amperage Range: 150 A - 300 A
• Maximum Wire Feed Speed: 1,000 in/min
• For Rear Connection Type: Tweco-Compatible
• Maximum Amperage Range (Merch): 150 A - 300 A
• Brand: TWECO
• Item Type: Mig Welding Gun
• MPN: 10201113
• Country of Origin: MX
• NumberOfItems: 1
• Liner: Tweco 42-3035-15
• Wire Size (In.): 0.035
• Trigger Type: Standard
• UOM: EA
• Manufacturer: Tweco
• Gas Type: CO2
• Head Type: Curved
• Process: MIG - GMAW
• Rear Connection Style: Tweco
• Welding Amp at Duty Cycle: 200 A at 60 percent
