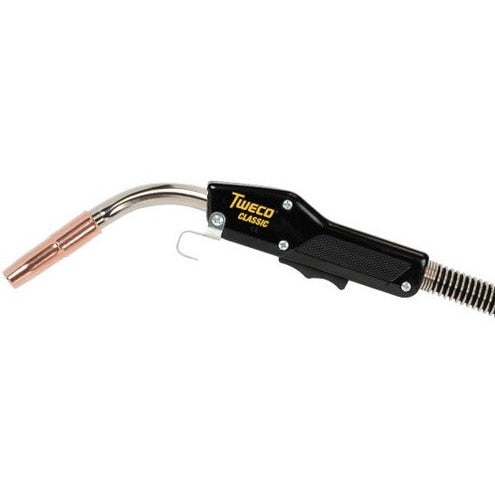

Tweco 1020-1623 Mig Gun 200A 15 Ft Euro-kwik

Product Description

The TWECO 1020-1623 is a professional-grade, air-cooled MIG gun rated at 200 amps and designed for semi-automatic welding in medium fabrication environments. Part of the Tweco No. 2 Series, it accepts wire diameters from 0.040 to 0.045 inches and ships with a 15-foot lead cable that supports consistent wire feedability. The gun operates at a 60 percent duty cycle with CO2 shielding gas. A 60-degree metal jacket conductor tube with full 360-degree swivel around the handle gives welders flexible positioning without re-rigging the cable. The rear connection uses a Euro-Kwik style fitting, and the front uses a fully insulated Mig-Kwik connector for fast hookup and removal at the wire feeder.

This gun suits a wide range of applications including shop fabrication, maintenance and repair, production welding, farm and garage work, and artistic metalworking. The oval handle is balanced to pivot at its center, reducing grip strain during extended use. A gun hanger at the bottom of the handle allows for safe resting between passes. The steel spring strain relief at the rear of the handle supports the Cablehoz to minimize wire feed problems. Two ball-point screws lock the Cablehoz and conductor tube in place for a secure mechanical connection and reliable current path through to the contact tip.

Key Features

• 200A air-cooled rating with 60 percent duty cycle at CO2 shielding gas
• Accepts 0.040 to 0.045 inch wire diameter with heavy-duty contact tip
• 15-foot lead cable with Euro-Kwik style rear connection and Mig-Kwik front connector
• 60-degree metal jacket conductor tube with full 360-degree swivel around handle
• Oval handle balanced at center pivot to reduce operator fatigue during extended use
• Silver-plated trigger contacts with self-cleaning action on each engagement
• 3-layer conductor tube construction for added durability and current transfer

Compatibility

Designed as a No. 2 Series OEM-style replacement MIG gun compatible with wire feeders accepting a Euro-Kwik style rear connection. Refer to your wire feeder documentation to confirm connector compatibility before installation.

Installation Notes

Installation should be performed by a qualified welding technician or maintenance professional. Power down and disconnect the wire feeder from its power source before attaching or removing the gun. Verify that the rear Euro-Kwik connection is fully seated and that both ball-point set screws are tightened against the Cablehoz and conductor tube before energizing. Follow all applicable AWS safety standards and the wire feeder manufacturer guidelines during setup.

Technical Specifications

• Amperage: 200A
• Duty Cycle: 60 percent at CO2 shielding gas
• Wire Diameter Range: 0.040 to 0.045 inches
• Cable Length: 15 feet
• Conductor Tube Angle: 60 degrees
• Conductor Tube Swivel: 360 degrees
• Rear Connection Type: Euro-Kwik
• Front Connection Type: Mig-Kwik (fully insulated)
• Cooling Method: Air-cooled
• Weight: 9.45 pounds
• Length: 23.1 inches
• Width: 3.2 inches
• Height: 14.3 inches

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1020-1623
