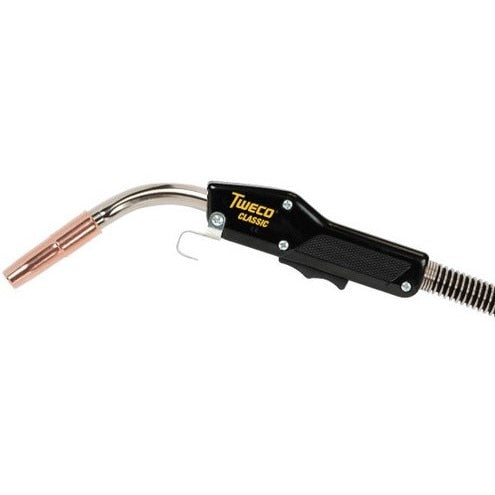

Tweco 1020-1125 Mig Welding Gun 200A Air Cooled 25 Ft

Product Description

The TWECO 1020-1125 is a professional-grade, air-cooled MIG gun rated at 200 amps and designed for semi-automatic MIG welding in medium fabrication environments. Part of the Tweco No. 2 Series, this gun accommodates wire sizes from 0.040 to 0.045 inches and ships with a 25-foot lead cable featuring a Miller-style rear connection. The 60-degree metal jacket conductor tube swivels a full 360 degrees around the handle and is built with three-layer construction for durability. Rated at a 60% duty cycle with CO2 gas, the gun is fully tested before leaving the factory. A silver-plated trigger with self-cleaning action, steel spring strain relief, and a Mig-Kwik fully insulated quick-connect at the wire feeder round out the core design.

The 1020-1125 is suited for a broad range of applications including shop fabrication, maintenance and repair, farm and garage use, and production welding. Its oval-shaped, crush-resistant handle is balanced to pivot at the center, reducing operator fatigue during extended use across varied welding positions. The gun hanger at the bottom of the handle allows for safe resting when not in active use. Two ball-point screws secure the Cablehoz and conductor tube within the handle, maintaining a solid current path to the contact tip. The enhanced direct-plug capability and quick-connect Mig-Kwik fitting at the feeder make changeovers and repairs straightforward for professional welders.

Key Features

• 200A air-cooled rating with 60% duty cycle at CO2 gas
• Accepts 0.040 to 0.045 inch wire sizes with heavy-duty contact tip
• 25-foot lead cable with Miller-style rear connection for broad feeder compatibility
• 360-degree swivel, 60-degree metal jacket conductor tube with three-layer construction
• Oval-shaped, high-impact crush-resistant handle balanced at center to reduce operator fatigue
• Silver-plated trigger contacts with self-cleaning action on every engage and disengage cycle
• Fully insulated Mig-Kwik connection for fast hookup and disconnection at the wire feeder

Compatibility

Designed as a Miller-style rear-connection MIG gun replacement suitable for wire feeders accepting that standard interface; a wide selection of front-end consumables is available to match specific application requirements.

Installation Notes

Installation should be performed by a qualified welding technician familiar with MIG equipment. Disconnect and de-energize the wire feeder before attaching or removing the gun connection. Ensure the Cablehoz is fully seated and both ball-point screws are tightened before resuming operation. Verify that all connections comply with applicable electrical and welding safety codes before use.

Technical Specifications

• Amperage: 200A
• Duty Cycle: 60% with CO2 gas
• Wire Size Range: 0.040 to 0.045 inches
• Lead Cable Length: 25 feet
• Cooling Method: Air cooled
• Conductor Tube Angle: 60 degrees
• Rear Connection Style: Miller style
• Package Weight: 13.4 pounds
• Package Length: 3.4 inches
• Package Width: 14.3 inches
• Package Height: 23.3 inches
• UPC: 608246056333

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1020-1125
