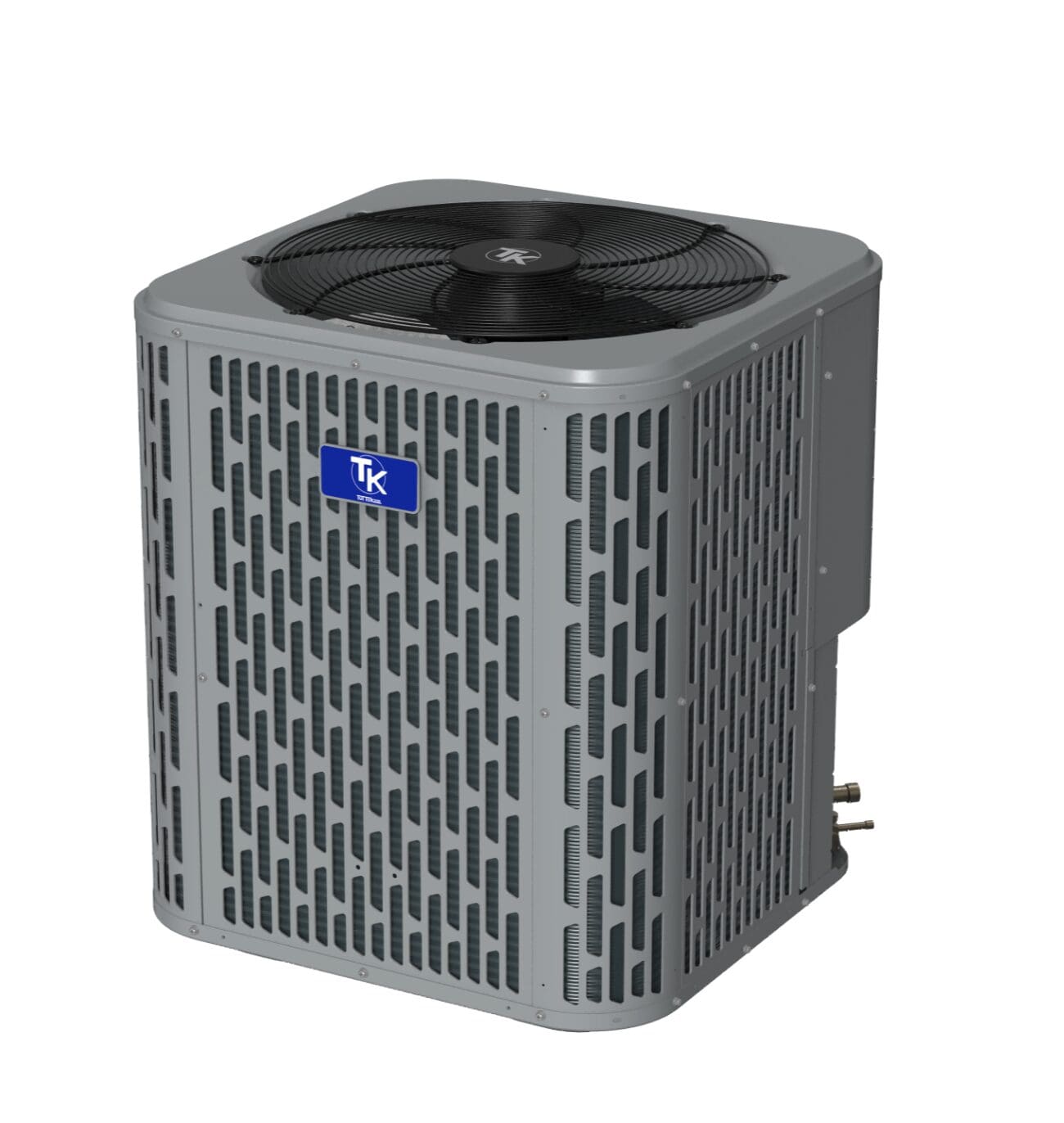

Tuttokool TAC5042A1000A Air Conditioner 3.5 Ton R-454B

Product Description

The TuttoKool Air Conditioning Condenser TAC5042A1000A offers a high-quality product at an affordable price. It features eco-friendly R-454B refrigerant, an energy-efficient compressor, and thermal overload protection. The condenser has inner-groove copper tubes and aluminum fins. It also has service valves with sweat connections and easy-access gauge ports.

• Eco-friendly R-454B refrigerant with low GWP value.
• Energy-efficient compressor.
• Equipped with thermal overload protection.

Product Highlights

This air conditioning condenser combines quality and affordability with features like R-454B refrigerant and a durable design.

Product Information

Standard Information

• Brand: TUTTOKOOL
• Manufacturer Part Number: TAC5042A1000A

Technical Specifications

• Model Number (s): TAC5042A1000A
• Brand: TuttoKool
• Type: Air Conditioning
• Ton: 3.5 Ton
• SEER: 14.3
• Cooling Btu: 41,000
• Cooling Stage(s): 1
• Compressor Stage: Single
• Electrical Phase(s): 1-Phase
• Refrigerant Type: R-454B
• Suction Valve Size (Inches): 7/8
• Liquid Valve Size (Inches): 3/8
• Cooling Capacity: 41000 Btu/hr
• Volts: 208/230V
• Phase: 1 ph
• dBa: 78
• Liquid Line Size: 3/8 in
• Suction Line Size: 7/8 in
• Amperage Rating: 24.5 A
• Compressor Type: Scroll
• Connection Type: Sweat
• Finish: Powder-Painted
• Frequency Rating: 60 Hz
• HP Rating: 1/3 hp
• Material: Steel
• Motor Type: ECM
• Nominal Capacity: 3.5 ton
• Number of Stages: 1
• SEER Rating: 15.2
• Series: TAC Series
• Sound Level: 78 dBA
