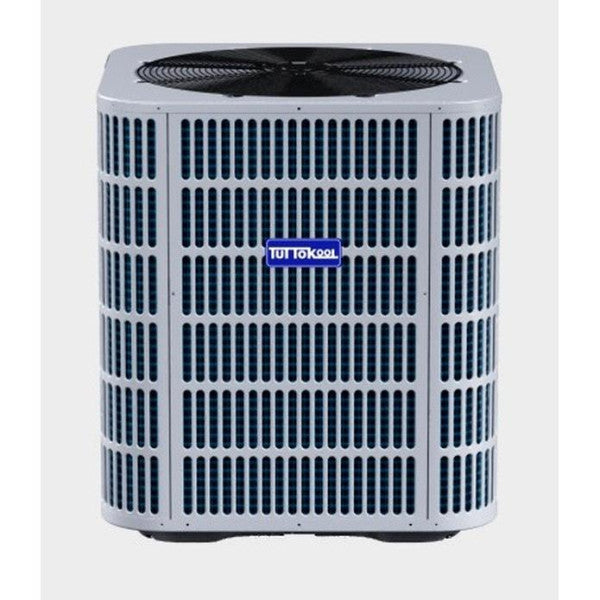

Tuttokool TAC5030A1000A Air Conditioner 208/230 V

Product Description

The TUTTOKOOL TAC5030A1000A air conditioner from the TAC Series features a 2.5-ton nominal capacity and a 28000 Btu/hr cooling capacity. Operates at 208/230 V, 16.3 A, and 60 Hz with a 1/6 hp motor. It uses R-454B refrigerant and has a 15.2 SEER rating. The unit features a rotary compressor and ECM motor.

• Compact design for easy installation and maneuverability
• Durable powder-painted galvanized steel cabinet chassis
• Protective steel louvered coil guard

Product Highlights

This TUTTOKOOL air conditioner is designed for efficient cooling and ease of installation, with a focus on durability and quiet operation.

Product Information

Standard Information

• Brand: TUTTOKOOL
• Manufacturer Part Number: TAC5030A1000A
• Country of Origin: China

Technical Specifications

• Amperage Rating: 16.3 A
• Compressor Type: Rotary
• Connection Type: Sweat
• Cooling Capacity: 28000 Btu/hr
• Finish: Powder-Painted
• Frequency Rating: 60 Hz
• HP Rating: 1/6 hp
• Liquid Line Size: 3/8 in
• Material: Steel
• Motor Type: ECM
• Nominal Capacity: 2.5 ton
• Number of Stages: 1
• Phase: 1 ph
• Refrigerant Type: R-454B
• SEER Rating: 15.2
• Series: TAC Series
• Sound Level: 75 dBA
• Suction Line Size: 3/4 in
• Voltage Rating: 208/230 V
• Model: TAC5030A1000A
• Brand: TuTToKool
