Tuttokool T4AH4P31B000A T4AH Series High-Efficiency Air Handler 208/230 V 900 cfm

Product Description

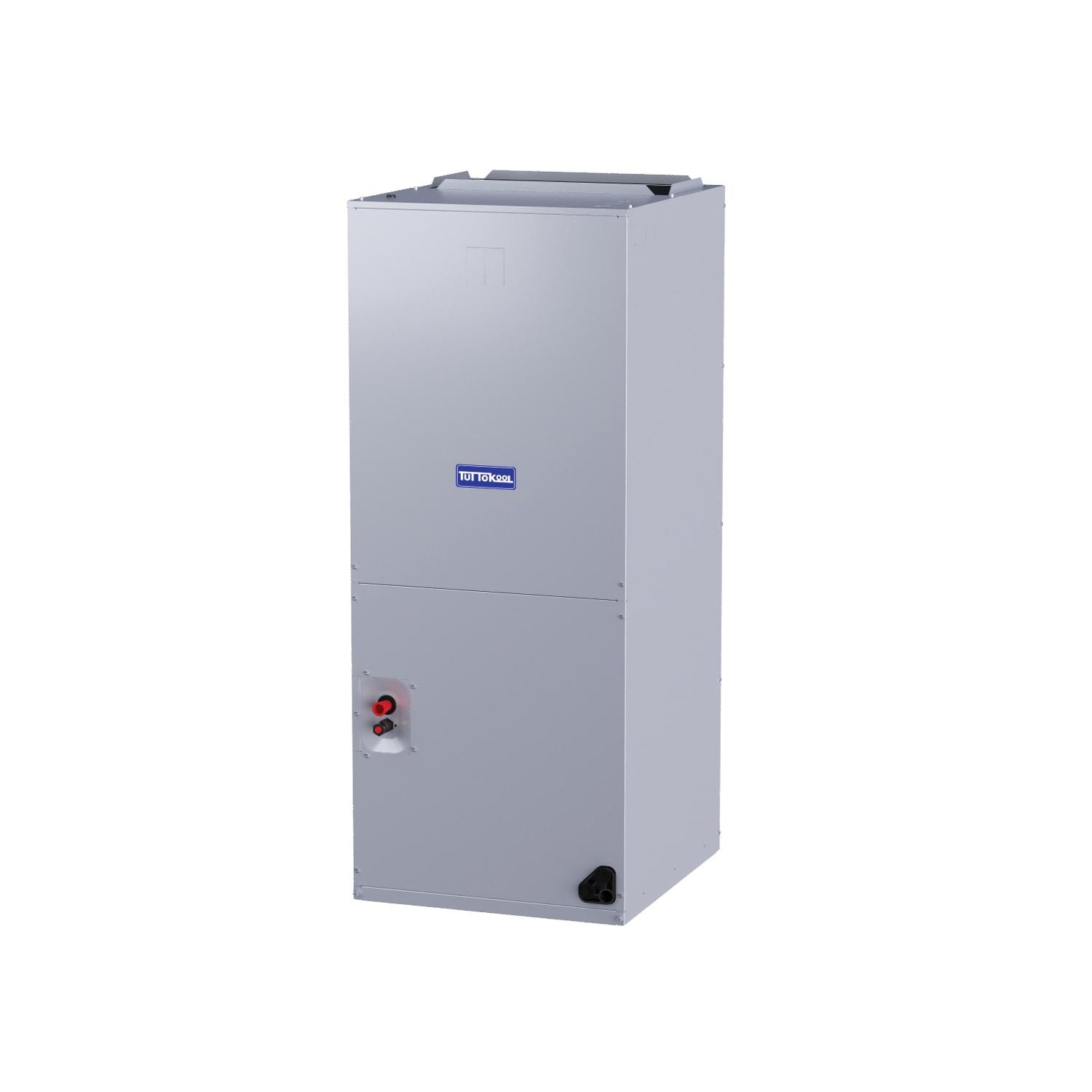

The TUTTOKOOL T4AH4P31B000A is a high-efficiency air handler from the T4AH Series. It features a 23000 Btu/hr cooling capacity, operates at 208/230 V, and uses 2.5 A. With a 1/5 hp motor and a rotational speed of 820 rpm, it delivers 900 cfm. Designed for down flow, horizontal left, horizontal right, and up flow configurations, it uses R-454B refrigerant and has a sound level of 67 dB.

• TXV designed for easy piston replacement
• All-aluminum heat exchanger extends product lifetime
• Advanced internal welding process to reduce potential corrosion

Product Highlights

High-efficiency air handler with aluminum heat exchanger and multiple flow configurations.

Product Information

Standard Information

• Brand: TUTTOKOOL
• Manufacturer Part Number: T4AH4P31B000A

Technical Specifications

• Amperage Rating: 2.5 A
• CFM Rating: 900 cfm
• Configuration: Down Flow, Horizontal Left, Horizontal Right, Up Flow
• Connection Size: 3/4 in
• Connection Type: FPT
• Cooling Capacity: 23000 Btu/hr
• Frequency Rating: 60 Hz
• HP Rating: 1/5 hp
• Liquid Line Size: 3/8 in
• Material: Aluminum
• Motor Type: PSC
• Phase: 1 ph
• Pressure Rating: 0.58 in-WC
• Refrigerant Type: R-454B
• Rotational Speed: 820 rpm
• Series: T4AH Series
• Sound Level: 67 dB
• Suction Line Size: 3/4 in
• Voltage Rating: 208/230 V
