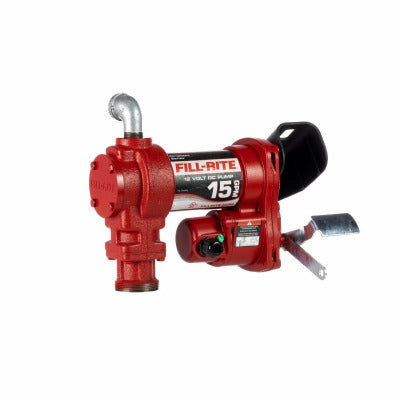

Tuthill Corp FR1204H 12V Dc Fuel Transfer Pump 15 Gpm

Product Description

The TUTHILL CORP FR1204H is a 12-volt DC fuel transfer pump rated at 15 GPM, built for contractor and industrial fueling operations. The pump features a 1/4 HP explosion-proof motor with a permanent magnet and cast bronze rotor fitted with bronze rotary vanes. The heavy-duty cast iron housing is designed for demanding field use. A built-in check valve and strainer protect the pump and downstream equipment. Thermal overload protection guards the motor during extended operation. The rotatable wiring junction box allows flexible installation orientation. This unit ships as pump only and is pad-lockable for secured fuel access.

The FR1204H is suited for stationary tank-mount fueling stations in construction, agriculture, fleet maintenance, and industrial settings. The 2-inch threaded base mounts directly to a tank. It is compatible with diesel, gasoline, kerosene, E15, and biodiesel blends up to B20, making it a versatile choice for sites running multiple fuel types. The low-amperage draw is designed to minimize strain on DC power sources such as vehicle batteries and portable power supplies. Licensed contractors and fleet service technicians are the typical installers for this class of pump.

Key Features

• Explosion-proof UL/CUL listed 1/4 HP motor rated for flammable fuel environments
• 15 GPM flow rate at 12 volts DC
• Permanent magnet motor with cast bronze rotor and bronze rotary vanes
• Built-in check valve and strainer for system protection
• Thermal overload protection prevents motor burnout during extended use
• Rotatable wiring junction box for flexible conduit routing
• Pad-lockable design for secured fuel dispensing
• 2-inch threaded base for direct tank mounting

Compatibility

Designed for use with diesel, gasoline, kerosene, E15, and biodiesel blends up to B20. Suitable for contractor and industrial grade stationary tank installations requiring a 12-volt DC fuel transfer pump.

Installation Notes

Installation should be performed by a qualified technician familiar with flammable liquid handling systems and applicable codes including NFPA 30 and NFPA 30A. Disconnect and isolate the DC power source completely before wiring or servicing the pump. The 2-inch threaded base must be sealed appropriately to the tank fitting to prevent fuel leaks. Do not use this pump with fuels or fluid types outside the listed compatibility range.
