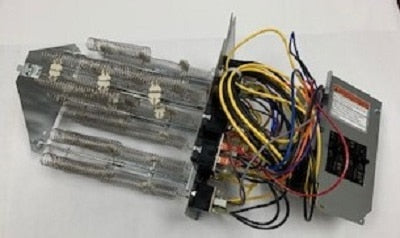

Tutco EH-20AKBLC Electric Heater 20 Kw 240V Single Phase

Product Description

The TUTCO EH-20AKBLC is a 20 kilowatt electric heat assembly built for 240 volt, single-phase, 60 Hz operation in forced-air HVAC systems. It ships with a factory-installed internal circuit breaker that handles branch circuit protection without requiring a separate disconnect. Open-coil resistive heating elements deliver direct, efficient heat transfer, while automatic high-temperature limit controls guard against overtemperature conditions. Factory wiring terminations and mounting provisions simplify installation and reduce field labor. Licensed HVAC technicians and electrical contractors are the typical installers for this assembly.

The EH-20AKBLC is intended for electric heat applications in residential and light commercial forced-air systems where a 20 kW heater assembly with an integral breaker is required. It is designed to drop into compatible air handler or furnace platforms that call for a 20 kW electric heat kit at 240 volts single phase. The integrated breaker eliminates the need for a separate branch circuit protection device at the unit, streamlining the installation in equipment closets and utility spaces.

Key Features

• 20 kilowatt heat output at 240 volts single phase, 60 Hz
• Factory-installed internal circuit breaker provides integral branch circuit protection
• Open-coil resistive heating elements for direct, efficient heat transfer
• Automatic high-temperature limit controls prevent overtemperature conditions
• Factory wiring terminations and mounting provisions reduce field installation time

Compatibility

Designed as an OEM-style replacement or upgrade electric heat assembly for compatible HVAC air handlers and forced-air platforms requiring a 20 kW, 240 volt single-phase heater with an integral circuit breaker.

Installation Notes

Installation must be performed by a licensed HVAC technician or electrical contractor in accordance with the National Electrical Code (NEC) and all applicable local codes. Disconnect and lock out all power to the air handler or furnace before servicing or installing the heat assembly. Verify that the supply voltage, phase configuration, and circuit ampacity match the assembly requirements before energizing. Do not bypass or tamper with the factory-installed circuit breaker or high-temperature limit controls.

Technical Specifications

• Capacity: 20 kW
• Voltage: 240 volts
• Phase: Single Phase
• Frequency: 60 Hz
• Element Type: Open-Coil Resistive
• Circuit Protection: Factory-Installed Internal Circuit Breaker
• High-Temperature Limit: Automatic

Standard Information

• Brand: TUTCO
• Manufacturer Part Number: EH-20AKBLC
