Tutco EH-10AKNLC Electric Heater 10 Kw 240V Non-fused

Product Description

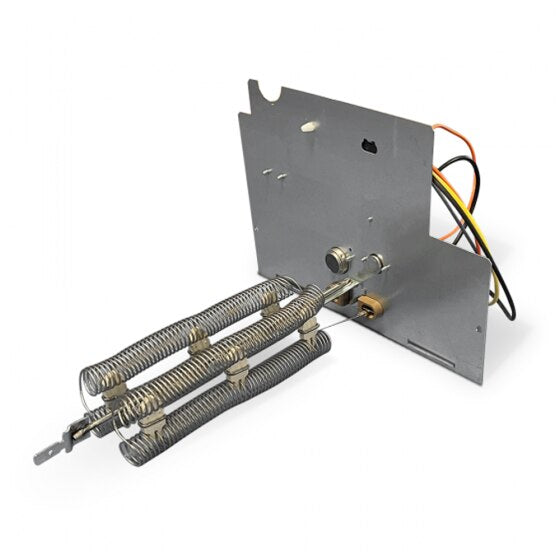

The TUTCO EH-10AKNLC is a 10 kilowatt electric heat assembly built for 240 volt, single phase, 60 Hz operation. It uses open-coil resistive heating elements and ships with factory wiring terminations and mounting provisions already in place. The non-fused configuration means there is no internal overcurrent protection built into the assembly, so the installer is responsible for providing appropriate circuit protection at the panel. Automatic high-temperature limit controls are included to guard against overheating conditions. Licensed HVAC technicians install this unit as part of a forced-air electric heat system.

This heater assembly is suited for residential and light commercial HVAC applications where a 10 kW non-fused electric heat kit is required. It is intended for installation in compatible air handlers or furnace cabinets that accept a bolt-in or slide-in electric heat section. The non-fused design is commonly specified when the equipment manufacturer requires external branch circuit protection rather than fusing internal to the heat section.

Key Features

• 10 kilowatt output for substantial supplemental or primary electric heat capacity
• 240 volt single phase 60 Hz operation
• Open-coil resistive heating elements for efficient radiant heat transfer in the airstream
• Automatic high-temperature limit controls protect against overheating
• Non-fused configuration — overcurrent protection supplied externally at the disconnect or panel
• Factory wiring terminations and mounting provisions simplify installation

Compatibility

Designed as an OEM-style replacement or retrofit electric heat assembly for compatible HVAC air handlers and electric furnace cabinets requiring a 10 kW non-fused heat section at 240 volts single phase.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with the National Electrical Code (NEC) and all applicable local codes. Disconnect and lock out all power to the air handler or furnace cabinet before handling the heat assembly. Because this assembly is non-fused, a properly sized overcurrent protective device must be installed in the branch circuit supplying the heater. Verify that the supply voltage, phase configuration, and available ampacity match the assembly ratings before energizing.

Technical Specifications

• Heating Capacity: 10 kW
• Voltage: 240 volts
• Phase: Single Phase
• Frequency: 60 Hz
• Element Type: Open-Coil Resistive
• Fusing: Non-Fused
• High-Temperature Protection: Automatic Limit Controls

Standard Information

• Brand: TUTCO
• Manufacturer Part Number: EH-10AKNLC
