Tutco EH-10AKBLC Electric Heater 10kw 240V Single Phase

Product Description

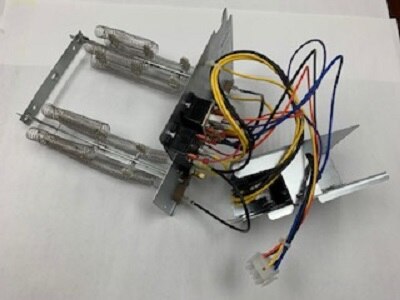

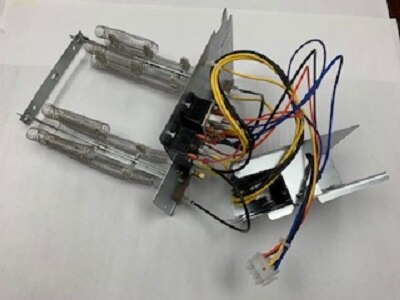

The TUTCO EH-10AKBLC is a 10 kilowatt electric heat assembly built for 240 volt single phase 60 Hz operation. It includes a factory-installed internal circuit breaker that provides branch circuit protection without requiring a separate disconnect. Open-coil resistive heating elements deliver reliable thermal output, and automatic high-temperature limit controls protect the assembly from overtemperature conditions. Factory wiring terminations and mounting provisions are included, reducing field labor during installation. Licensed HVAC technicians install this unit as a drop-in electric heat section in compatible air handler or furnace applications.

This heater assembly is suited for residential and light commercial HVAC systems that require an electric heat section rated at 10 kW. It is designed for installations where single phase 240 volt power is available and an integral circuit breaker is required or preferred to satisfy branch circuit protection requirements. The factory-wired assembly streamlines installation in new construction and retrofit scenarios where a dedicated electric heat kit with integral overcurrent protection is specified.

Key Features

• 10 kilowatt resistive heating output for 240 volt single phase applications
• Factory-installed internal circuit breaker provides integral branch circuit protection
• Open-coil resistive heating elements for straightforward serviceability
• Automatic high-temperature limit controls guard against overtemperature conditions
• Factory wiring terminations and mounting provisions included for reduced field labor

Compatibility

Designed as an OEM-style electric heat assembly for compatible HVAC systems requiring a 10 kW single phase electric heat section with an integral circuit breaker.

Installation Notes

Installation should be performed by a licensed HVAC technician in accordance with the NEC and applicable local electrical codes. Disconnect and lock out all power to the air handling system before servicing or installing the heat assembly. Verify that the supply circuit voltage and ampacity match the assembly rating prior to energizing. Follow the equipment manufacturer guidelines for mounting orientation and clearances.

Technical Specifications

• Heating Capacity: 10 kilowatts
• Voltage: 240 volts
• Phase: Single phase
• Frequency: 60 Hz
• Circuit Breaker: Factory-installed internal
• Element Type: Open-coil resistive
• High-Temperature Protection: Automatic limit controls

Standard Information

• Brand: TUTCO
• Manufacturer Part Number: EH-10AKBLC
