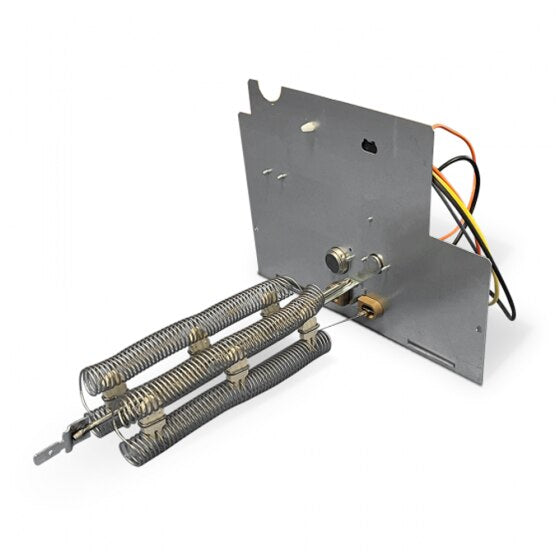

Tutco EH-07AKNLC Electric Heater 8 Kw 240V Non-fused

Product Description

The TUTCO EH-07AKNLC is an 8.0 kilowatt electric heat assembly built for 240 volt, single-phase, 60 Hz operation in forced-air HVAC systems. It uses open-coil resistive heating elements to deliver consistent supplemental or primary electric heat. The assembly ships with factory wiring terminations and mounting provisions, reducing field prep time. Automatic high-temperature limit controls provide thermal protection without requiring separate field-installed safety devices. This unit is a non-fused configuration, meaning it does not include internal overcurrent protection. A licensed HVAC technician or electrician handles the installation.

This heater assembly is suited for residential and light commercial forced-air applications where an 8 kW non-fused electric heat section is required. It installs into compatible HVAC air handlers or electric furnace cabinets that accept a bolt-in heat kit of this capacity. The non-fused design accommodates installations where overcurrent protection is provided upstream by the panel or disconnect. Factory wiring terminations simplify connection to the unit control board and line voltage supply.

Key Features

• 8.0 kW resistive heating output for reliable supplemental or primary electric heat
• Rated for 240 volt single-phase 60 Hz operation
• Non-fused configuration relies on upstream overcurrent protection
• Open-coil resistive heating elements for efficient heat transfer
• Automatic high-temperature limit controls for thermal protection
• Factory wiring terminations and mounting provisions for straightforward installation

Compatibility

Designed as an OEM-style replacement or upgrade heat assembly for compatible HVAC air handlers and electric furnace cabinets requiring an 8 kW non-fused electric heat section rated at 240 volts single phase.

Installation Notes

Installation must be performed by a licensed HVAC technician or electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. Disconnect and lock out all power to the air handler or furnace cabinet before servicing or installing the heat assembly. Verify that upstream overcurrent protection in the electrical panel or disconnect is correctly sized for the 8 kW load before energizing the unit. Do not bypass or modify the factory high-temperature limit controls.

Technical Specifications

• Heating Capacity: 8.0 kW
• Voltage: 240 volts
• Phase: Single Phase
• Frequency: 60 Hz
• Element Type: Open-Coil Resistive
• Fusing: Non-Fused
• High-Temperature Limit: Automatic

Standard Information

• Brand: TUTCO
• Manufacturer Part Number: EH-07AKNLC
