Tutco EH-07AKBLC Electric Heater 8kw 240V Single Phase

Product Description

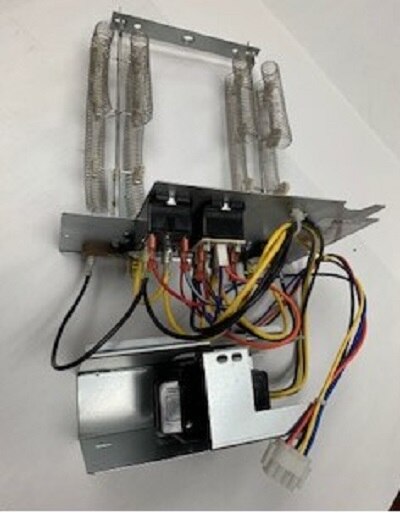

The TUTCO EH-07AKBLC is an 8.0 kilowatt electric heat assembly built for 240 volt, single phase, 60 Hz operation. It ships with a factory-installed internal circuit breaker that provides branch circuit protection without requiring a separate disconnect in qualifying installations. Open-coil resistive heating elements deliver consistent heat output, and automatic high-temperature limit controls shut the assembly down if operating temperatures exceed safe thresholds. Factory wiring terminations and mounting provisions are included, reducing field fabrication time. Licensed HVAC technicians are the intended installers for this type of electric heat kit.

This heater assembly is designed for installation in compatible HVAC electric heat applications where an 8 kW capacity with an integral circuit breaker is required. Typical use cases include forced-air air handler units and electric furnace installations in residential or light commercial settings. The factory-wired configuration allows the unit to be mounted and connected to the air handler without extensive field modification. Installers working in jurisdictions that follow NEC requirements for electric heat will find the integral breaker helpful for branch circuit compliance.

Key Features

• 8.0 kW heating capacity at 240 volts single phase
• Factory-installed internal circuit breaker for branch circuit protection
• Open-coil resistive heating elements for reliable, even heat output
• Automatic high-temperature limit controls for thermal safety
• Factory wiring terminations and mounting provisions included
• Designed for 60 Hz single phase power systems

Compatibility

Designed as an OEM-style replacement or new-installation electric heat assembly for compatible HVAC air handler and electric furnace applications requiring an 8 kW, 240 volt single phase heater kit with an integral circuit breaker.

Installation Notes

Installation should be performed by a licensed HVAC technician in accordance with the NEC and applicable local codes. Disconnect and lock out all electrical power to the air handler before beginning installation. Verify supply voltage and phase configuration match the assembly ratings prior to energizing. Do not bypass or jumper the factory-installed high-temperature limit controls.

Technical Specifications

• Heating Capacity: 8.0 kW
• Voltage: 240 volts
• Phase: Single Phase
• Frequency: 60 Hz
• Circuit Protection: Factory-installed internal circuit breaker
• Element Type: Open-coil resistive
• High-Temperature Protection: Automatic limit controls

Standard Information

• Brand: TUTCO
• Manufacturer Part Number: EH-07AKBLC
