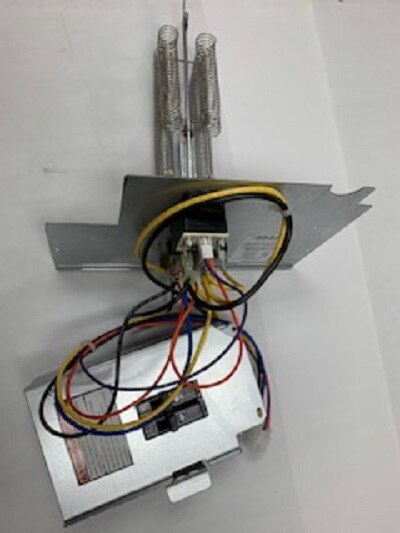

Tutco EH-05AKBLC Electric Heater 5kw 240V Single Phase

Product Description

The TUTCO EH-05AKBLC is a 5.0 kilowatt electric heat assembly built for 240-volt, single-phase, 60 Hz operation in compatible HVAC systems. It features open-coil resistive heating elements, a factory-installed internal circuit breaker for branch circuit protection, and automatic high-temperature limit controls. Factory wiring terminations and mounting provisions are included, reducing field assembly time. Licensed HVAC technicians handle installation of this type of electric heat kit in forced-air systems as a supplemental or primary heat source.

This electric heater assembly is designed for installation in HVAC electric heat applications requiring a 5 kW heat kit with an integral circuit breaker. It is suited for residential and light commercial forced-air systems where a factory-ready heater assembly with built-in overcurrent protection is required. The integrated breaker eliminates the need for a separate branch circuit breaker in many configurations, simplifying the installation.

Key Features

• 5.0 kW heating capacity at 240 volts single phase, 60 Hz
• Factory-installed internal circuit breaker provides branch circuit protection
• Open-coil resistive heating elements for efficient heat transfer
• Automatic high-temperature limit controls for thermal protection
• Factory wiring terminations and mounting provisions included

Compatibility

Designed as an OEM-style replacement or upgrade electric heat assembly for compatible HVAC forced-air systems requiring a 5 kW, 240-volt, single-phase heater kit with an integral circuit breaker.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with applicable local codes and the NEC. Disconnect and lock out all electrical power to the air handler or furnace before beginning installation. Verify that the system voltage and phase match the heater assembly ratings prior to wiring. Do not bypass or defeat the factory-installed high-temperature limit controls or internal circuit breaker.

Technical Specifications

• Heating Capacity: 5.0 kW
• Voltage: 240 volts
• Phase: Single Phase
• Frequency: 60 Hz
• Circuit Breaker: Factory-installed internal
• Element Type: Open-coil resistive
• High-Temperature Limit: Automatic

Standard Information

• Brand: TUTCO
• Manufacturer Part Number: EH-05AKBLC
