Tutco EC-10BKB Electric Heat Assembly 9 Kw 240V

Product Description

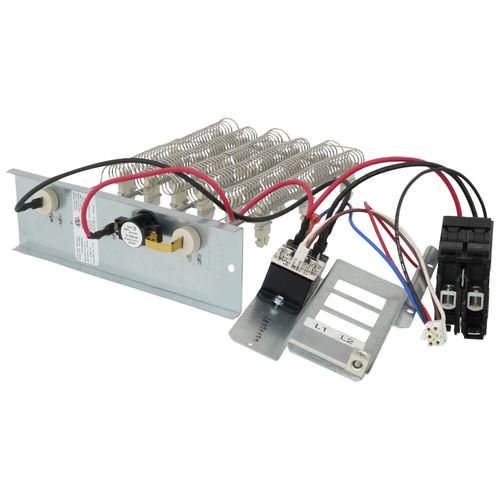

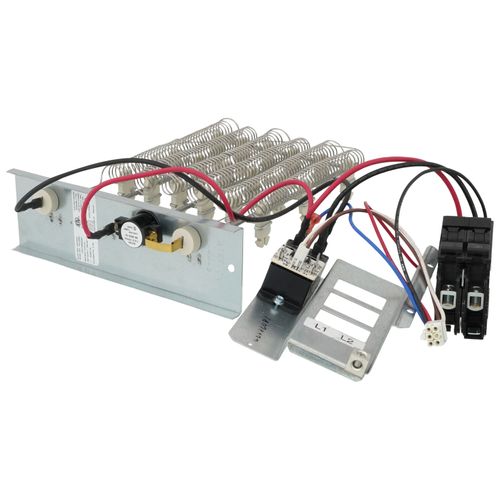

The TUTCO EC-10BKB is a 9.0 kW electric heat assembly built for 240 volt, single-phase, 60 Hz operation in forced-air HVAC systems. It features open-coil resistive heating elements, a factory-installed internal circuit breaker for branch circuit protection, and automatic high-temperature limit controls. Factory wiring terminations simplify field installation and reduce labor time. This assembly is intended for licensed HVAC technicians performing electric heat add-on or replacement work in residential and light commercial air handling applications.

The EC-10BKB is suited for installations requiring a 9 kW electric heat assembly with an integral breaker. It fits into compatible electric heat sections of forced-air air handling units where the system voltage is 240 volts single phase. The factory-installed breaker eliminates the need for a separate external disconnect in many configurations, streamlining the branch circuit arrangement within the air handler cabinet.

Key Features

• 9.0 kW output at 240 volts single phase, 60 Hz
• Factory-installed internal circuit breaker provides branch circuit protection
• Open-coil resistive heating elements for efficient heat transfer
• Automatic high-temperature limit controls for overheat protection
• Factory wiring terminations for simplified field hookup

Compatibility

Designed as an OEM-style electric heat assembly replacement for compatible forced-air air handling units requiring a 9 kW, 240 volt single-phase heat kit with an integral circuit breaker.

Installation Notes

Installation should be performed by a licensed HVAC technician in accordance with NEC requirements for electric heating equipment and local jurisdiction codes. Disconnect and lock out all power to the air handling unit before beginning installation or servicing this assembly. Verify that the supply voltage and circuit capacity match the assembly ratings before energizing. Do not bypass or defeat the factory-installed high-temperature limit controls or circuit breaker.

Technical Specifications

• Heating Capacity: 9.0 kW
• Voltage: 240 volts
• Phase: Single Phase
• Frequency: 60 Hz
• Circuit Protection: Factory-installed internal circuit breaker
• Element Type: Open-coil resistive
• High-Limit Control: Automatic

Standard Information

• Brand: TUTCO
• Manufacturer Part Number: EC-10BKB
