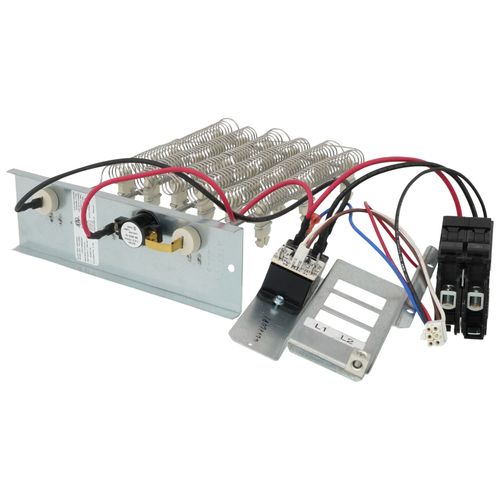

Tutco EC-05CKB 5 Kw 240V Electric Heater 18 Size Fan Coil

Product Description

The TUTCO EC-05CKB is a 5.0 kilowatt electric heat assembly built for 240 volt, single-phase, 60 Hz operation in compatible fan coil systems. It ships with a factory-installed internal circuit breaker that provides branch circuit protection without requiring a separate disconnect. Open-coil resistive heating elements deliver consistent heat output, while automatic high-temperature limit controls protect the assembly from overtemperature conditions. Factory wiring terminations are included, reducing field labor during installation. This assembly is intended for HVAC professionals performing electric heat upgrades or replacements in fan coil applications.

The EC-05CKB is configured specifically for 18 size fan coil platforms requiring a 5 kW heat kit with an integral breaker. It is not a universal heater strip — the form factor and electrical configuration are matched to the 18 size fan coil unit. Licensed HVAC technicians installing this assembly should confirm the host unit is rated for a 5 kW heat kit before proceeding. This assembly suits residential and light commercial fan coil installations where electric heat is the primary or supplemental heat source.

Key Features

• 5.0 kW heat output at 240 volts single phase 60 Hz
• Factory-installed internal circuit breaker for branch circuit protection
• Open-coil resistive heating elements for reliable heat delivery
• Automatic high-temperature limit controls for overtemperature protection
• Factory wiring terminations reduce field installation time
• Configured specifically for 18 size fan coil platforms

Compatibility

Designed for installation in compatible 18 size fan coil units requiring a 5 kW electric heat assembly with an integral circuit breaker.

Installation Notes

Installation should be performed by a licensed HVAC technician in accordance with NEC requirements for electric heat and the fan coil manufacturer's installation instructions. Disconnect and lock out all power to the fan coil unit before inserting or wiring the heat kit. Verify that the supply circuit voltage, phase, and ampacity match the assembly ratings prior to energizing. Do not operate the heater outside the host fan coil — open-coil elements require airflow across the elements at all times to prevent element failure.

Technical Specifications

• Heat Output: 5.0 kW
• Voltage: 240 volts
• Phase: Single phase
• Frequency: 60 Hz
• Element Type: Open-coil resistive
• Circuit Protection: Factory-installed internal circuit breaker
• High-Limit Control: Automatic high-temperature limit
• Fan Coil Size: 18

Standard Information

• Brand: TUTCO
• Manufacturer Part Number: EC-05CKB
