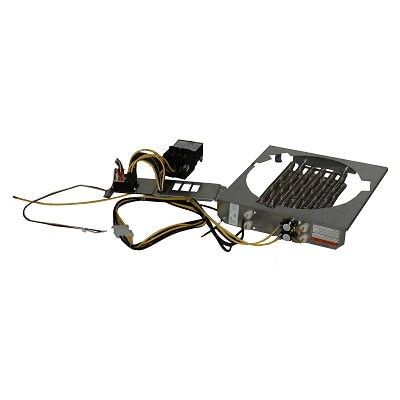

Tutco CPHEATER130A02LC Electric Heater 10 Kw 240V

Product Description

The TUTCO CPHEATER130A02LC is a 10 kilowatt electric heat assembly built for 240 volt, single phase, 60 Hz operation. It ships with a factory-installed internal circuit breaker that provides branch circuit protection, eliminating the need for a separate breaker installation on most compatible systems. Open-coil resistive heating elements deliver consistent heat output, while automatic high-temperature limit controls protect the assembly from overheating conditions. Factory wiring terminations are included, reducing field wiring time during installation. Licensed HVAC technicians and electricians are the primary trades that install and service this unit.

This heater assembly is intended for use in compatible HVAC electric heat applications that require a 10 kW heating stage with an integral circuit breaker. Typical installations include forced-air air handler units and electric furnace systems operating on 240 volt single phase residential or light commercial electrical service. The factory-wired circuit breaker makes this assembly well suited for replacement or new-install scenarios where a self-contained, breaker-protected heat kit is specified.

Key Features

• 10 kilowatt heat output for 240 volt single phase systems
• Factory-installed internal circuit breaker provides branch circuit protection
• Open-coil resistive heating elements for reliable, consistent heat delivery
• Automatic high-temperature limit controls guard against overheating
• Factory wiring terminations minimize field wiring labor
• Designed for 60 Hz single phase electrical service

Compatibility

Designed as an OEM-style replacement electric heat assembly for compatible HVAC air handler and electric furnace systems requiring a 10 kW, 240 volt single phase heat kit with an integral circuit breaker.

Installation Notes

Installation must be performed by a licensed HVAC technician or qualified electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Disconnect and lock out all electrical power to the air handler or furnace before removing or installing the heat assembly. Verify that the supply circuit voltage and phase match the assembly rating of 240 volts, single phase, before energizing. Do not bypass or remove the factory-installed high-temperature limit controls.

Technical Specifications

• Heating Capacity: 10 kW
• Voltage: 240 volts
• Phase: Single Phase
• Frequency: 60 Hz
• Circuit Breaker: Factory-installed, internal
• Element Type: Open-coil resistive
• High-Temperature Protection: Automatic limit controls

Standard Information

• Brand: TUTCO
• Manufacturer Part Number: CPHEATER130A02LC
