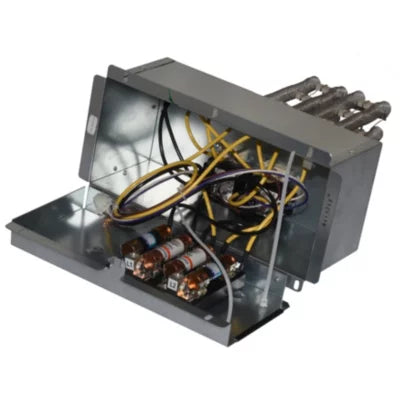

Tutco CP-070A00-07F1 Electric Heater 7.2 Kw 240V Fused

Product Description

The TUTCO CP-070A00-07F1 is a 7.2 kilowatt electric heat assembly built for 240-volt, single-phase, 60 Hz operation in ducted HVAC systems. It features open-coil resistive heating elements, a fused configuration for internal overcurrent protection, and automatic high-temperature limit controls. Factory wiring terminations are included, reducing field wiring time during installation. This type of electric heat assembly is typically installed by licensed HVAC technicians working on residential or light commercial air handling systems that require a field-installed or replacement electric heat kit.

The CP-070A00-07F1 is suited for ducted electric heating applications where a 7.2 kW fused heater assembly is specified. It is designed to integrate into compatible HVAC electric heat configurations operating on 240-volt single-phase power. Fused electric heat assemblies like this are common in electric air handlers, package units, and fan coil systems where internal overcurrent protection is required by equipment specification or local code.

Key Features

• 7.2 kW output for ducted electric heating applications
• 240-volt, single-phase, 60 Hz rated operation
• Fused configuration provides internal overcurrent protection
• Open-coil resistive heating elements for reliable heat output
• Automatic high-temperature limit controls for safety shutoff
• Factory wiring terminations included for streamlined installation

Compatibility

Designed as an OEM-style replacement electric heat assembly for compatible 240-volt single-phase ducted HVAC systems requiring a 7.2 kW fused heater kit.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all electrical power to the air handling unit before servicing or installing the heat assembly. Follow all applicable NEC requirements for electric heat equipment, including proper wire sizing and disconnect provisions. Do not energize the assembly outside of its rated airflow environment, as operating without adequate airflow can damage heating elements and limit controls.

Technical Specifications

• Heating Capacity: 7.2 kW
• Voltage: 240 volts
• Phase: Single phase
• Frequency: 60 Hz
• Element Type: Open-coil resistive
• Overcurrent Protection: Fused (internal)
• High-Limit Control: Automatic reset

Standard Information

• Brand: TUTCO
• Manufacturer Part Number: CP-070A00-07F1
