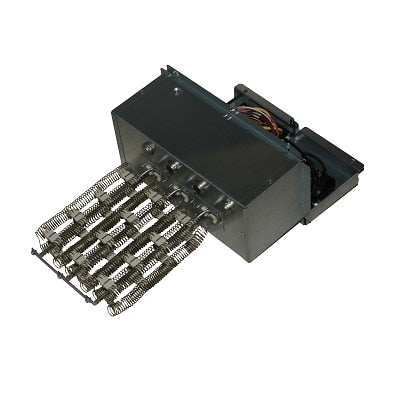

Tutco CP-066A00-15F1 Electric Heat Assembly 15 Kw 240V

Product Description

The TUTCO CP-066A00-15F1 is a 15 kW electric heat assembly rated for 240-volt single-phase 60 Hz operation. It uses open-coil resistive heating elements and includes a fused configuration that provides internal overcurrent protection without relying solely on external circuit protection. Automatic high-temperature limit controls are factory-installed to shut down the assembly if operating temperatures exceed safe thresholds. Factory wiring terminations are included, reducing field wiring time during installation. This assembly is intended for licensed HVAC technicians installing or replacing electric heat sections in compatible air-handling equipment.

This heat assembly is suited for residential and light commercial HVAC applications where a 15 kW fused electric heat section is specified. It is designed for ducted forced-air systems operating on 240-volt single-phase power. Typical installations involve replacement or upgrade of an existing electric heat section inside an air handler or furnace cabinet. Installers should verify that the equipment nameplate and wiring diagram call for a 15 kW fused assembly before ordering.

Key Features

• 15 kW output at 240 volts single-phase 60 Hz
• Fused configuration provides internal overcurrent protection
• Open-coil resistive heating elements for efficient heat transfer
• Automatic high-temperature limit controls factory-installed
• Factory wiring terminations included for streamlined field installation

Compatibility

Designed as an OEM-style replacement electric heat assembly for compatible ducted HVAC air-handling equipment requiring a 15 kW fused single-phase heat section.

Installation Notes

Installation should be performed by a licensed HVAC technician in accordance with applicable local codes and NEC requirements for electric heating equipment. Disconnect and lock out all power to the air-handling unit before removing or installing the heat assembly. Verify that the supply circuit ampacity and overcurrent protection match the assembly ratings prior to energizing. Do not bypass or remove the factory-installed fuses or high-temperature limit controls.

Technical Specifications

• Heating Capacity: 15 kW
• Voltage: 240 volts
• Phase: Single Phase
• Frequency: 60 Hz
• Element Type: Open-Coil Resistive
• Protection: Fused with Automatic High-Temperature Limit Controls

Standard Information

• Brand: TUTCO
• Manufacturer Part Number: CP-066A00-15F1
