Tutco CP-052A00-05N1 Electric Heat Assembly 5 Kw 240V

Product Description

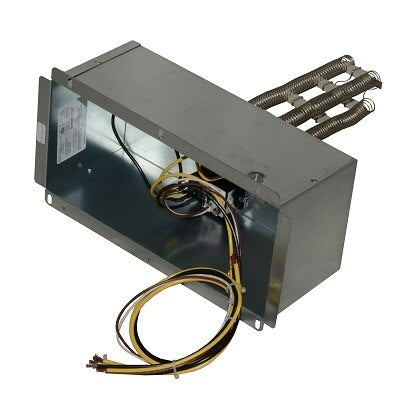

The TUTCO CP-052A00-05N1 is a 5.0 kilowatt electric heat assembly built for 240-volt, single-phase, 60 Hz HVAC applications. It uses open-coil resistive heating elements to deliver consistent, reliable heat output. The assembly ships with factory wiring terminations and includes automatic high-temperature limit controls for thermal protection. This is a non-fused configuration, meaning it does not contain internal overcurrent protection — a dedicated disconnect and branch-circuit protection must be supplied externally. Licensed HVAC technicians typically install this unit as part of a forced-air electric heating system.

The CP-052A00-05N1 is intended for use in compatible HVAC electric heat applications that require a 5 kW non-fused heater assembly. It is suited for residential and light commercial forced-air systems where the air handler or furnace cabinet accepts a field-installed or OEM-replacement electric heat kit. Factory wiring terminations simplify field connection and reduce installation time. Installation must follow all applicable electrical codes, including NEC requirements for electric heating equipment.

Key Features

• 5.0 kW heat output at 240 volts single phase
• Open-coil resistive heating elements for efficient heat transfer
• Automatic high-temperature limit controls for thermal safety
• Non-fused design — external overcurrent protection required
• Factory wiring terminations for straightforward field connection
• Rated for 60 Hz single-phase power supply

Compatibility

Designed as an OEM-style replacement electric heat assembly for compatible HVAC air handler or forced-air systems requiring a 5 kW non-fused heater kit at 240 volts single phase.

Installation Notes

Installation should be performed by a licensed HVAC technician in accordance with NEC Article 424 and all applicable local codes. Disconnect and lock out all power to the air handler before servicing or installing the heat assembly. Because this unit is non-fused, a properly rated branch-circuit breaker or fuse must be installed externally to provide overcurrent protection. Verify that the supply voltage and phase configuration match the assembly ratings before energizing the unit.

Technical Specifications

• Heat Output: 5.0 kW
• Voltage: 240 volts
• Phase: Single Phase
• Frequency: 60 Hz
• Fusing: Non-Fused
• Element Type: Open-Coil Resistive
• High-Limit Protection: Automatic Temperature Limit Controls

Standard Information

• Brand: TUTCO
• Manufacturer Part Number: CP-052A00-05N1
