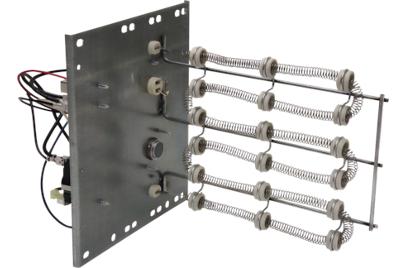

Tutco 81-0302-02 Electric Heat Kit 10 Kw 240V with Breaker

Product Description

The TUTCO 81-0302-02 is a 10 kW electric heat kit rated for 240 volts and 39.6 amps, designed for forced-air heating applications in residential and light commercial HVAC systems. It includes an integrated circuit breaker, which eliminates the need for a separate external disconnect on the electric heat circuit. This heat kit installs within an air handler or heat pump air handler to provide supplemental or emergency electric resistance heat. HVAC technicians handle the installation as part of a complete split-system or packaged-unit setup.

This heat kit is suited for residential air handlers and heat pump systems requiring supplemental strip heat. It is engineered as a direct replacement for Goodman HKTPD101 and HKP-10C electric heat kits, making it a compatible aftermarket option for service technicians replacing failed or undersized heat strips in existing Goodman equipment. The 10 kW output is a common capacity for single-zone residential applications in moderate climates.

Key Features

• 10 kW heating capacity for supplemental or emergency heat in residential systems
• 240-volt, 39.6-amp rating matches common residential air handler electrical requirements
• Integrated circuit breaker included — no separate disconnect required for the heat circuit
• Direct replacement for Goodman HKTPD101 and HKP-10C heat kits
• Classified under electric heating elements and sequencers for straightforward category sourcing

Compatibility

Designed as a direct OEM-style replacement for Goodman HKTPD101 and HKP-10C electric heat kits. Verify electrical ratings and mounting configuration against the existing air handler before installation.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with NEC requirements for electric heating equipment and the equipment manufacturer's wiring diagram. Disconnect and lock out all power to the air handler before removing the existing heat kit or making any wiring connections. Confirm the branch circuit breaker and wire gauge at the panel are rated to handle the 39.6-amp load before energizing. Do not bypass or jumper the integrated breaker.

Technical Specifications

• Heating Capacity: 10 kW
• Voltage: 240 volts
• Amperage: 39.6 amps
• Breaker Included: Yes
• Category: Electric Heating Elements and Sequencers

Standard Information

• Brand: TUTCO
• Manufacturer Part Number: 81-0302-02
